CLUBSWAN 125

DESIGN

The architect

Juan Kouyoumdijan

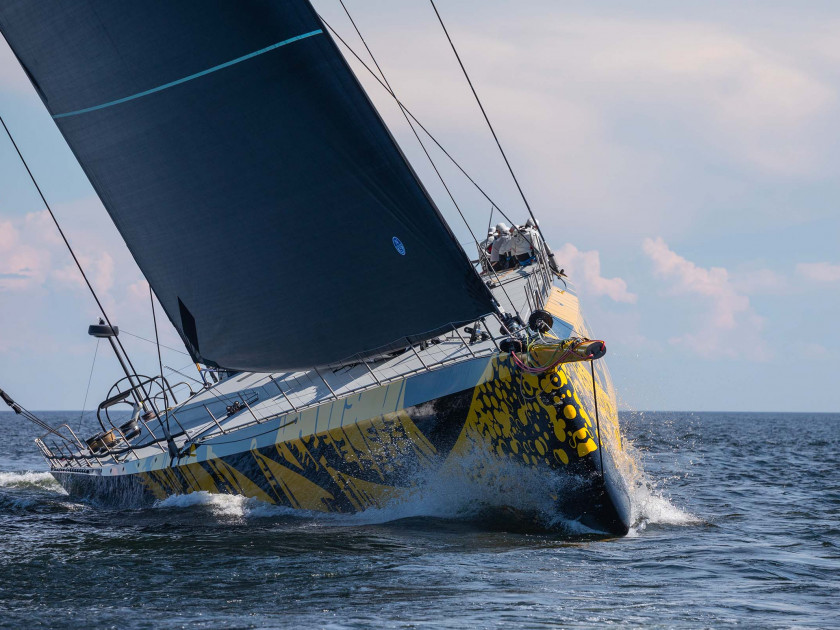

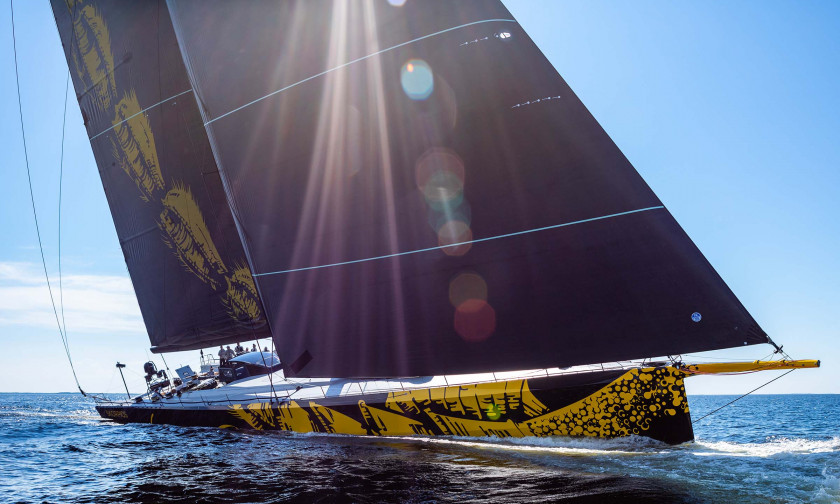

The ClubSwan 125 is the new Juan Kouyoumdijan high performance superyacht commissioned for a passionate team consisting of the Owner, his friends and a professional crew. Her cutting-edge foil system is only one indication of the pioneering design principles of Nautor Swan and ClubSwan’s desire to be the ultimate leader in performance and quality in this lightweight, racing supermaxi yacht.

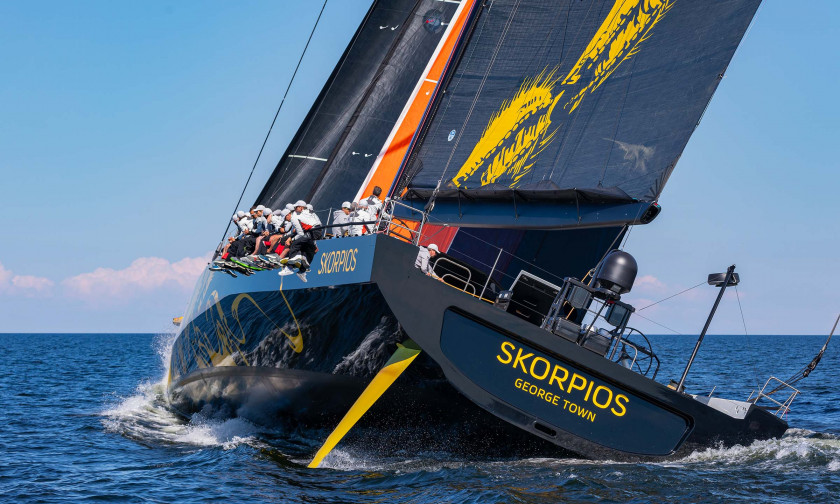

Every design aspect has been managed with intense scrutiny, starting with the innovative single curved foil solution selected for optimum sideways lift in some conditions as well as vertical lift in faster conditions, which considerably reduces the drag of the hull and the loss of dynamic righting moment.
The complexity of construction of this yacht required Nautor to team up with the best designers, builders and suppliers in the world to supplement the existing team of Juan Kouyoumdjan and Nautor’s in-house experts. The team includes two main experts: Killian Bushe, involved in the construction of the hull and structural composite components, and Bob Wylie, for the deck and sailing handring, including specific performance-driven systems.

DECK

Harken’s carbon-top 1235 primary winches have been selected for the ClubSwan 125. These winches are developments of Harken’s 1135 grand prix winches that employ integral winch base and ring gear assemblies machined from a single block of stainless steel to extend load capacity from 9 to 11 tonnes. The two utility pit winches are Harken 990s, which have been proven over thousands of ocean miles and are currently serving in the Volvo Ocean 65 fleet.

The boat’s custom athwartship jib system utilises Harken titanium TTR2 sheaves for maximum efficiency. The custom mainsheet system is a development of Harken MEGA CRX traveler cars utilising Harken titanium TTR2 sheaves. All padeyes are in-deck soft-attach titanium loop padeyes. All in-deck sheaves will be titanium TTR2 as well. Harken TRR2 loop blocks and the new generation of Harken new high-load snatchblocks are specified for sheet leads above deck. Nautor Swan is breaking new ground with the ClubSwan 125 supermaxi yacht. North Sails’ combination of analytical tools and industry-leading 3Di sails make them the sailmaker of choice for this exciting new project.

INTERIORS

The interiors represent a new generation of Swan interiors where evolution is a result of analysis and research, evaluating the existence of each component without compromising the functionality and comfort. This yacht interior, designed by Adriana Monk (MONK DESIGN), is a masterpiece of composite technology and traditional Swan materials such as real wood veneers. The brief was to create an embracing environment below deck where you are protected from the harsh elements of water, wind and sun. Customer preferences play a large role in the selection of colours and general ambience.

The colour palette was intentionally selected to be dark and masculine complemented with light coloured fabrics and leathers. The general arrangement below went through many iterations before crystallising into a clear layout where accommodation such as the Owner’s cabin and saloon are separated from the crew quarters and sail-handling areas. The arrangement is versatile as the full beam Owner’s cabin can be split into two guest cabins with en-suites by adding a centreline bulkhead. Racing-style crew quarters with revealed structures and installations are located aft. Adjustable pipecots are placed outboard and the navigation station is adjacent to the crew companionway. Another innovation is the positioning of the engine room, forward of the mast, isolating Owner and Guest cabins with a buffer zone from the noise and service paths.

SPECIFICATIONS

LOA42,62 m
LWL36,60 m
Beam max8,75 m
Draught (canting keel)7,4 m
Displacement (empty)59,300 kg
Ballast (fin and bulb)23,230 kg
Engine500 hp
IM53.30 m
J16.50 m
P51.700 m
E18.350 m
STL21.760 m
Jib Area 100% triangle413 m2
Mainsail659 m2
Downwind Main + A31961 m2
Fuel storage1000 l / 264 USg
Rem. Fuel storage2000 l / 528 USg
Fuel day tank200 l / 53 USg
Water1320 l / 58 USg
Hot water60 l / 16 USg
Black / Grey water215 l / 57 USg
Ballast tanks mid8000 l / 2113 USg
Ballast tanks aft7000 l / 1849 USg
Service battery24V 540Ah / 1 h
Electronic battery24V 180 Ah / 1 h
Starting battery12V 25 Ah / 1 h
GeneratorFischer Panda 10000i 8kW
Main EngineMarine Diesel Sweden VGT 500
 373kW @ 3600 rpm
Shore power230V 32A 1-phase
DIMENSIONS
LOA42,62 m
LWL36,60 m
Beam max8,75 m
Draught (canting keel)7,4 m
Displacement (empty)59,300 kg
Ballast (fin and bulb)23,230 kg
Engine500 hp
RIG AND SAIL DIMENSIONS
IM53.30 m
J16.50 m
P51.700 m
E18.350 m
STL21.760 m
Jib Area 100% triangle413 m2
Mainsail659 m2
Downwind Main + A31961 m2
TANK CAPACITY
Fuel storage1000 l / 264 USg
Rem. Fuel storage2000 l / 528 USg
Fuel day tank200 l / 53 USg
Water1320 l / 58 USg
Hot water60 l / 16 USg
Black / Grey water215 l / 57 USg
Ballast tanks mid8000 l / 2113 USg
Ballast tanks aft7000 l / 1849 USg
BATTERY & POWER SOURCES
Service battery24V 540Ah / 1 h
Electronic battery24V 180 Ah / 1 h
Starting battery12V 25 Ah / 1 h
GeneratorFischer Panda 10000i 8kW
Main EngineMarine Diesel Sweden VGT 500
 373kW @ 3600 rpm
Shore power230V 32A 1-phase
