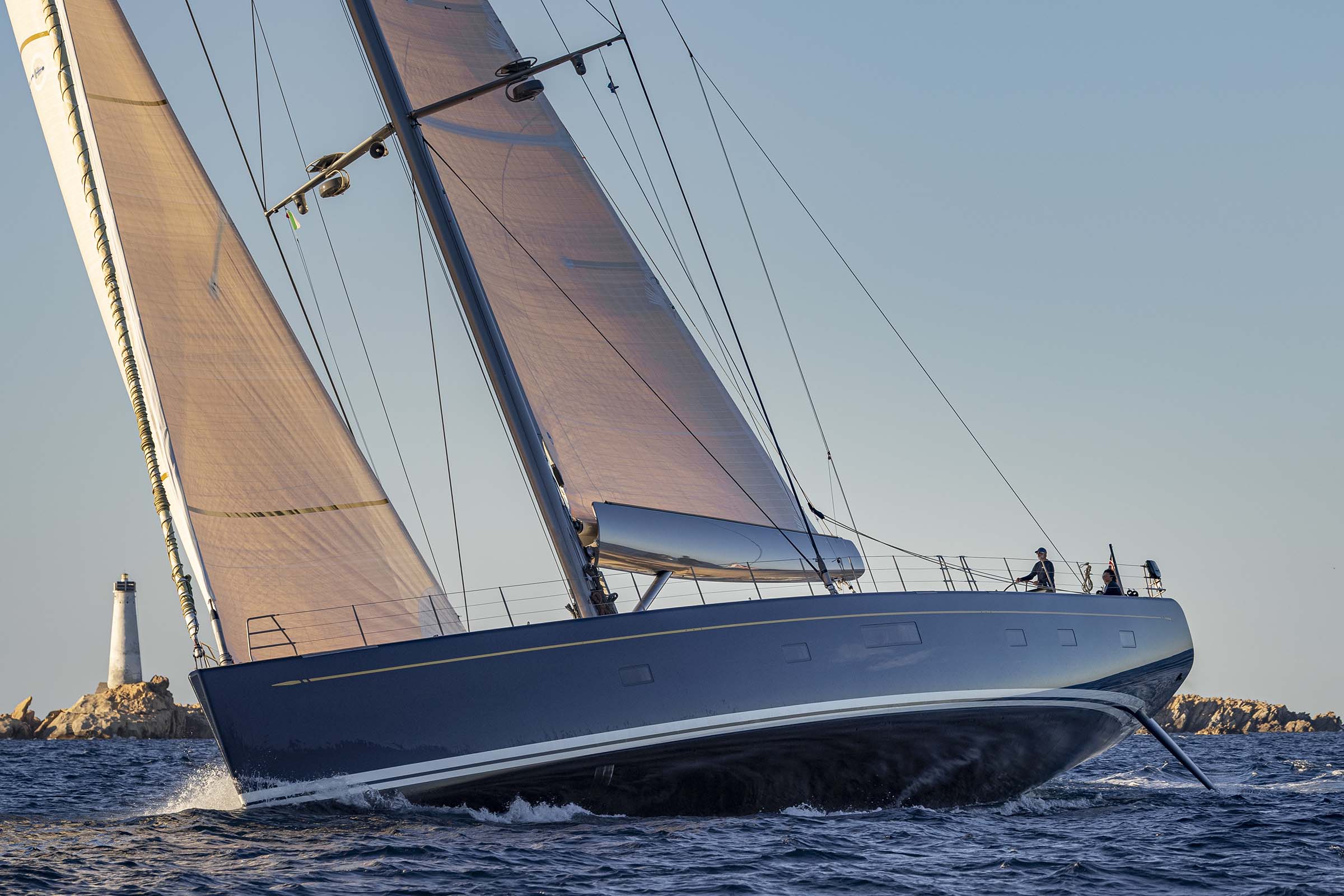

SWAN 128

THE NAVAL ARCHITECTURE

The Swan 128, project N. 1400 by Frers studio, consolidates the Argentinian designer’s forty-year collaboration with the Finnish shipyard, particularly active over the last ten years with the production of 13 new yachts, 7 of which are over 80 feet (the limit that separates Swan Yachts from Maxi Swan Yachts).

The architect

Germán Frers

“The Swan 128 perfectly embodies the Swan concept of the sporty cruiser, a yacht designed for long ocean voyages but also perfectly at ease in major international competitions, without needing to change any of its characteristics.”

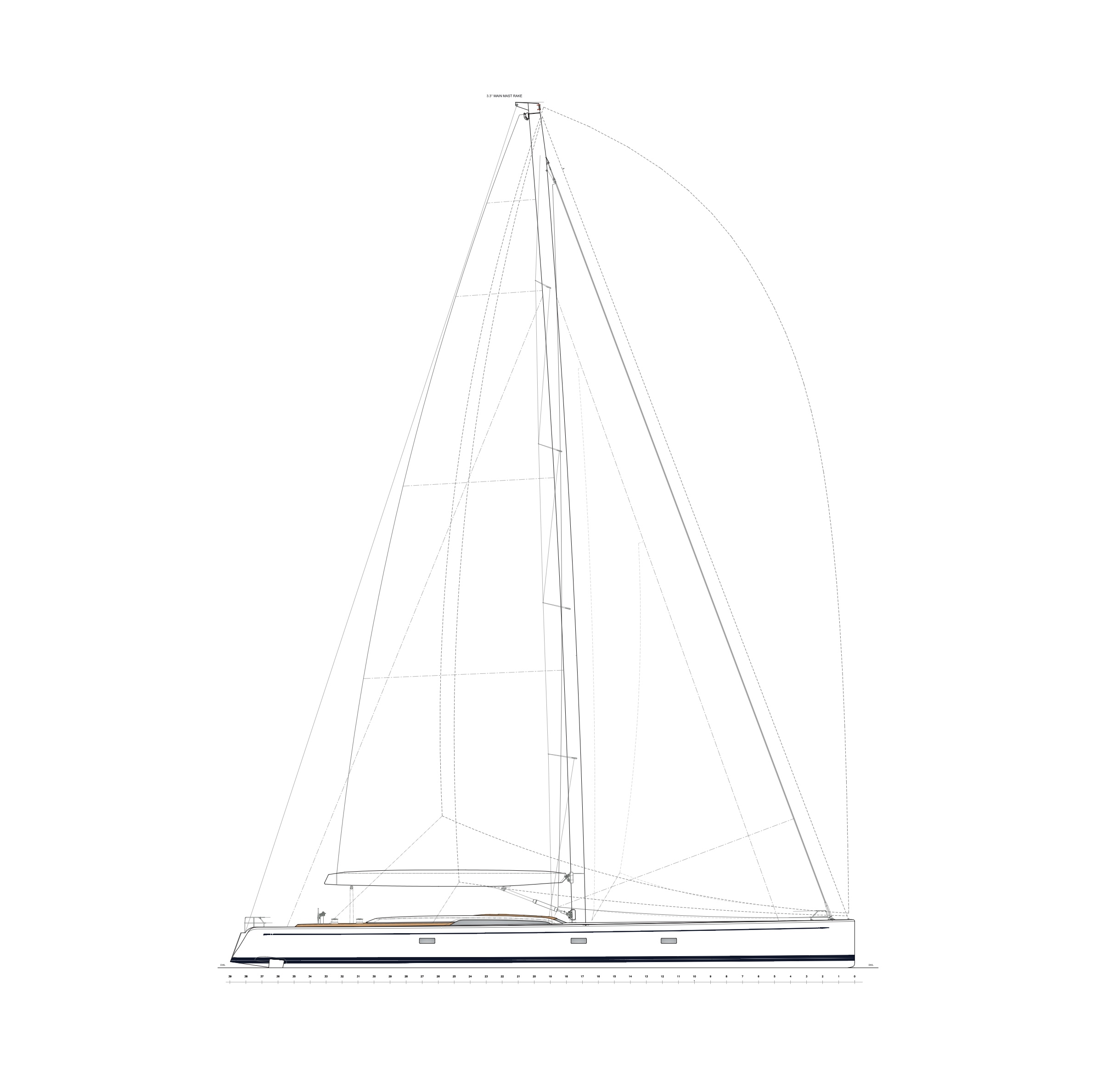

Standard Sailplan

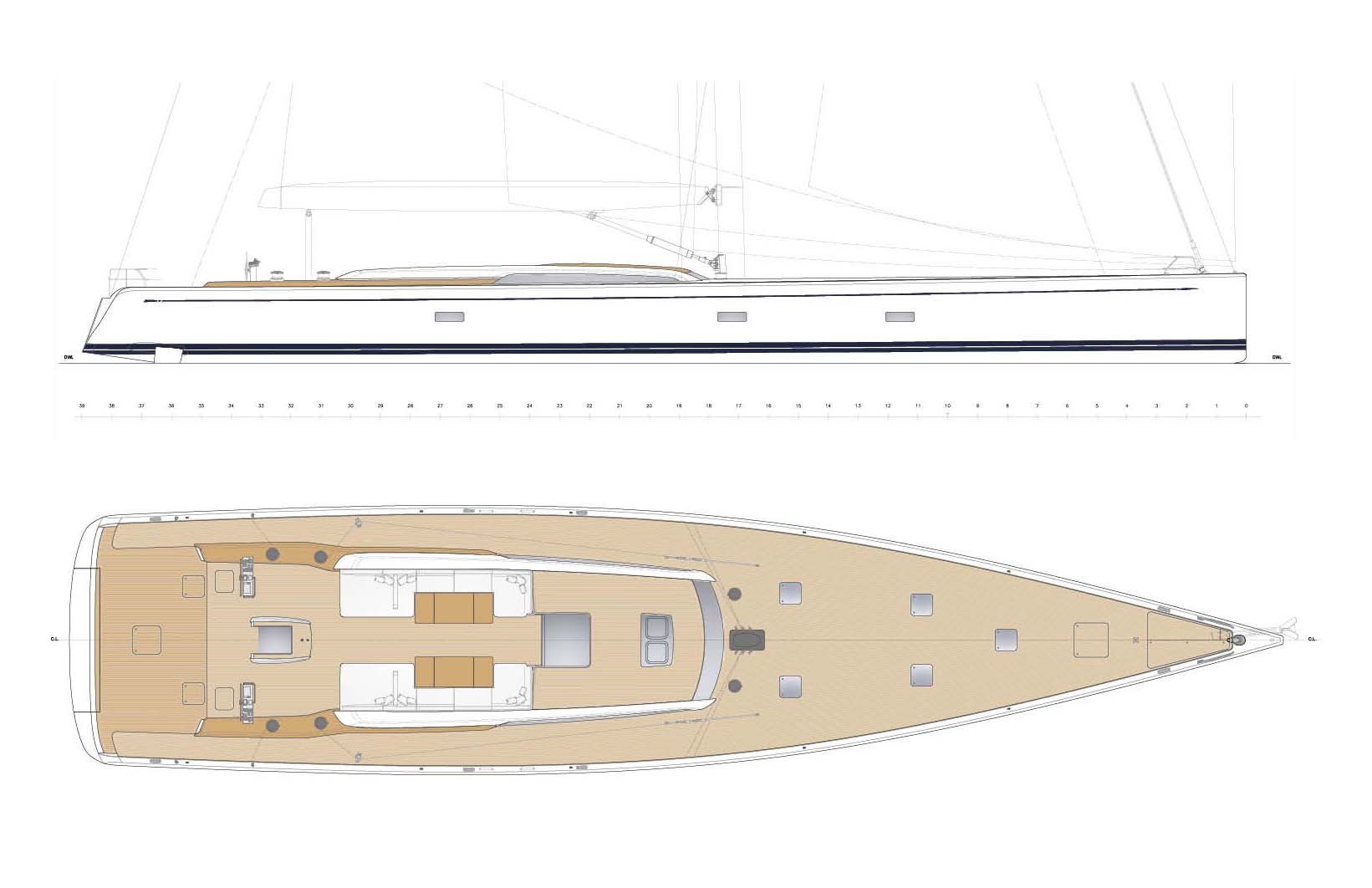

DECK

The deck plan features a streamlined and sculpted deckhouse, albeit in a semi-raised saloon configuration, that gives the boat an especially sporty feel. Designer Lucio Micheletti focused on volumes, shapes, and details to provide as much lightness as possible without compromising the functionality and protection typical of Swan deckhouses.

Exterior Designer

Lucio Micheletti

A skilful combination of traditional styling and taut forms, an interplay of materials that creates a lively chiaroscuro with a marked dynamic quality (what the architect Micheletti calls ‘quayside speed’). The cockpit offers the typical three-area division that characterises all Swans. The front area, close to the deckhouse and protected by a sprayhood and a bimini top (a retractable model with rigid structure is optional), is dedicated to guests.

standard

INTERIORS

The collaboration between Frers studio, the shipyard’s interiors department and architect Misa Poggi has led to an optimal and flexible layout, with a large owner’s quarters in the foreship area and a generous aft crew area.

The interior designer

Misa Poggi

There is a wide choice of woods, starting from a natural oak base, leathers, and textiles. Architect Misa Poggi together with the Finnish firm’s in-house team are at the owners’ disposal to interpret any desire in layout and style, suggesting tailored materials to make each Swan 128 unique and inimitable.

CONFIGURATIONS

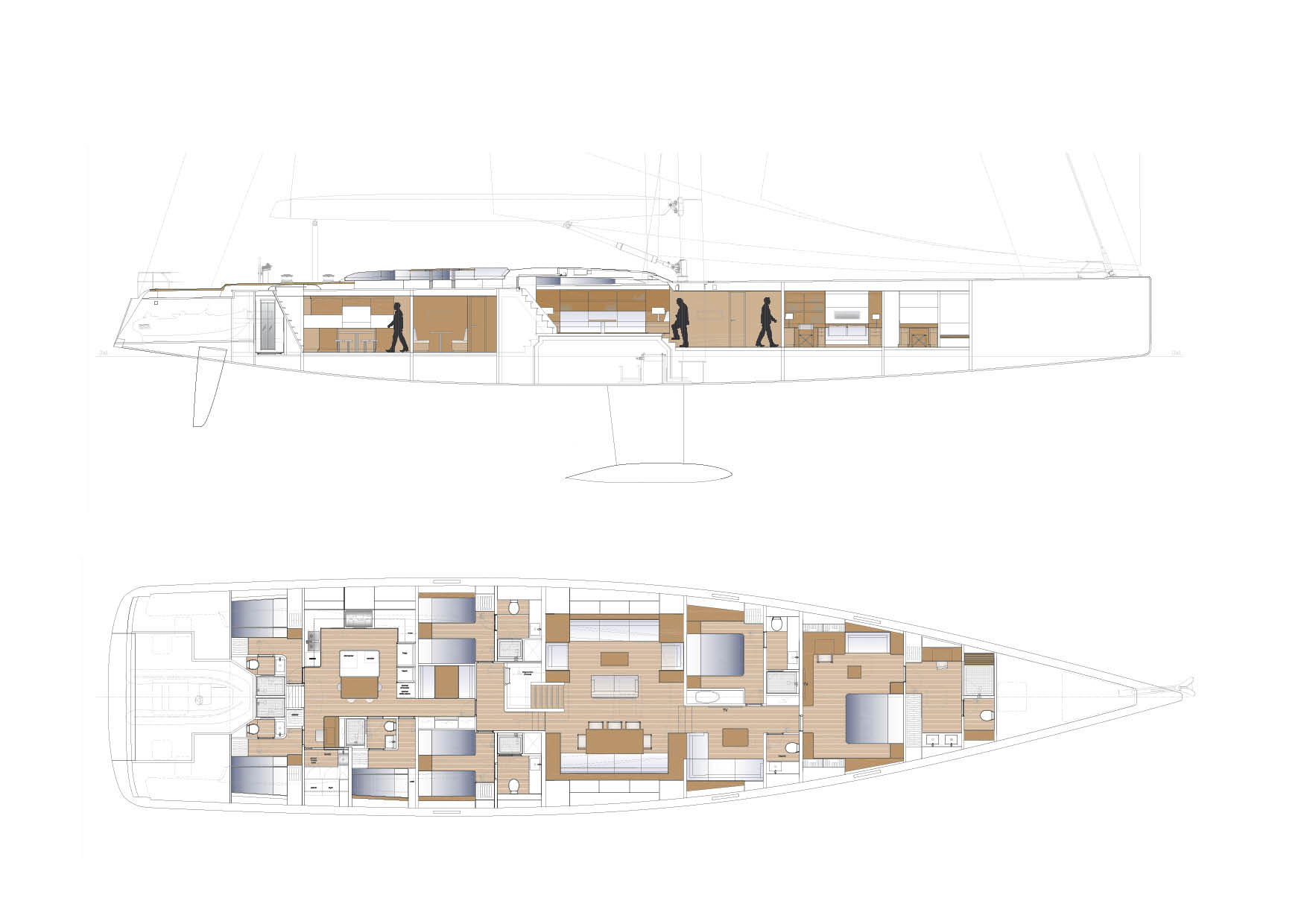

standard

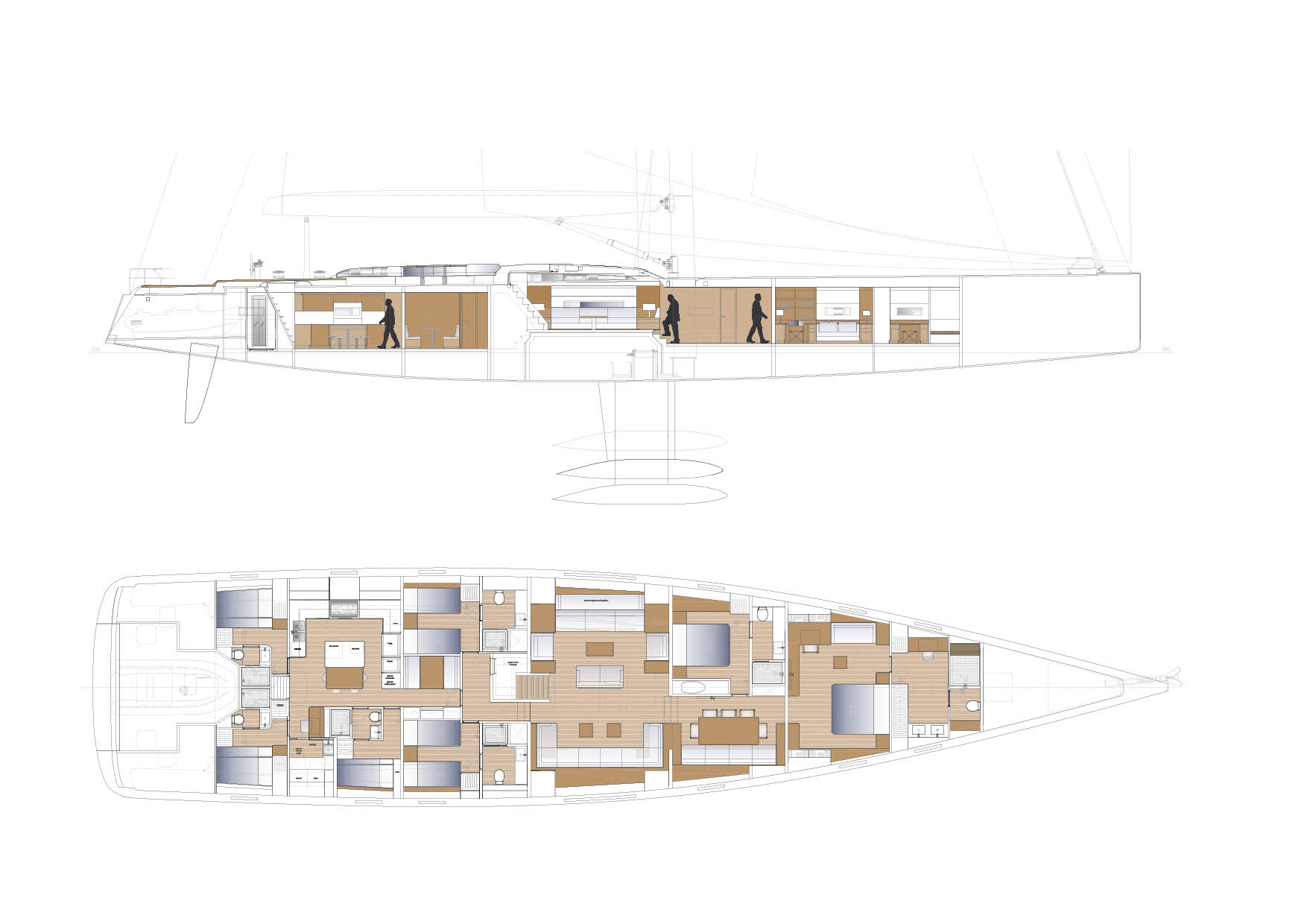

with options

SPECIFICATIONS

Length of hull38.98 m 127.89 ft
LWL35.94 m 117.91 ft
Beam max8.65 m 28.38 ft
Draught (Standard keel)4.7 m 15.42 ft
Displacement (light) estimate 122.800 kg 270.700 lbs
Displacement (loaded) estimate 136.200 kg 300.200 lbs
Ballast estimate39.500 kg 87.000 lbs
Main engine405 kW (550 hp)
Estimated gross tonnage188
IG48.00 m 157.5 ft
J15.37 m 50.4 ft
P47.50 m 155.8 ft
E14.60 m 47.9 ft
Fore triangle368.9 m² 3970 sq.ft
Main Sail (ORC)443.8 m² 4777 sq.ft
Jib (ORC)401.5 m² 4321 sq.ft
Asymmetric spinnaker1180 m² 12700 sq.ft TBC
Fuel5500 l 1452 USg
AdBlue 550 l 145 USg
Water 2650 l 700 USg
Hot water 200 l 53 USg
Grey water 600 l 158 USg
Black water 600 l 158 USg
Service battery 24 V 2530 Ah / 1 h
Radio battery 24 V 230 Ah / 1 h
Starting batteries 24 V 75 Ah / 20 h
Diesel generators 2 x 230/400 V 32 kW 3-phase
Shore power 230/400 V 50 A 3-phase
DIMENSIONS
Length of hull38.98 m 127.89 ft
LWL35.94 m 117.91 ft
Beam max8.65 m 28.38 ft
Draught (Standard keel)4.7 m 15.42 ft
Displacement (light) estimate 122.800 kg 270.700 lbs
Displacement (loaded) estimate 136.200 kg 300.200 lbs
Ballast estimate39.500 kg 87.000 lbs
Main engine405 kW (550 hp)
Estimated gross tonnage188
RIG AND SAIL DIMENSIONS
IG48.00 m 157.5 ft
J15.37 m 50.4 ft
P47.50 m 155.8 ft
E14.60 m 47.9 ft
SAIL AREAS
Fore triangle368.9 m² 3970 sq.ft
Main Sail (ORC)443.8 m² 4777 sq.ft
Jib (ORC)401.5 m² 4321 sq.ft
Asymmetric spinnaker1180 m² 12700 sq.ft TBC
TANK CAPACITY
Fuel5500 l 1452 USg
AdBlue 550 l 145 USg
Water 2650 l 700 USg
Hot water 200 l 53 USg
Grey water 600 l 158 USg
Black water 600 l 158 USg
BATTERY
Service battery 24 V 2530 Ah / 1 h
Radio battery 24 V 230 Ah / 1 h
Starting batteries 24 V 75 Ah / 20 h
Diesel generators 2 x 230/400 V 32 kW 3-phase
Shore power 230/400 V 50 A 3-phase
