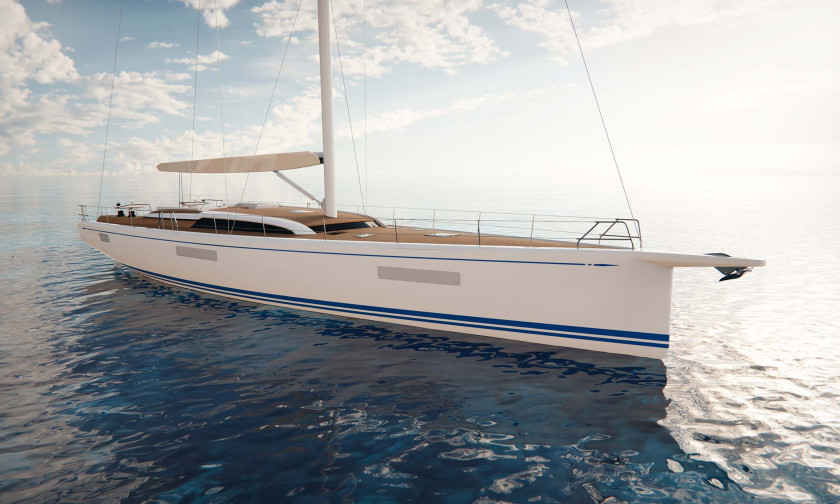

SWAN 80

DESIGN

The new Swan 80 has been designed by the renowned naval architect Germán Frers creating the overall concept, with naval architect Lucio Micheletti the exterior  and Misa Poggi the interior.

A fresh new look on deck features wood covered cockpit coamings ­— which have been extended further aft for crew comfort — that add a new perspective to the yacht. With its modern, uncluttered look the design speaks of neatness and efficiency.

Below deck the Swan 80 has the space and capacity to offer a wide variety of cabin configurations and open areas to meet all requirements.

Standard

With options

DECK

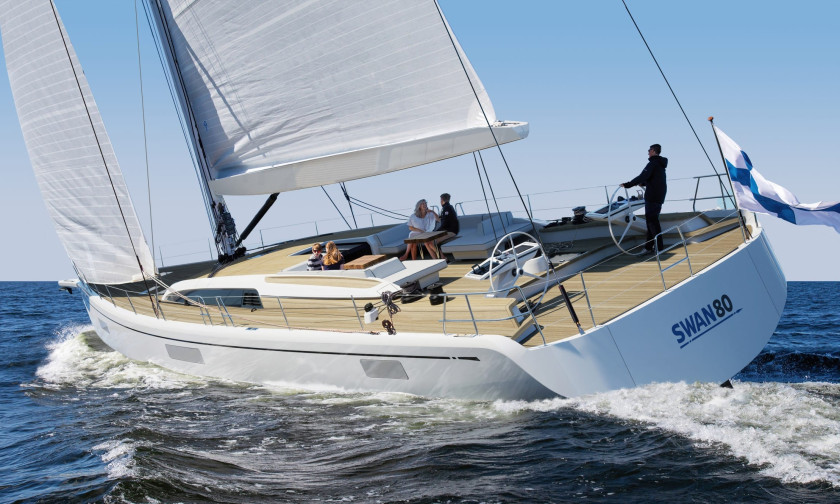

The Swan 80’s near flush wooden deck serves to highlight the discreet and streamlined coachroof running aft from the mast.

As the whole aft cockpit section of the yacht is flat, it allows any configuration of seating, ondeck storage or other furnishings that might be desired. It is also possible, of course, to remove all deck furniture when in racing mode.

Similarly the open aft deck can be set up for swimming and sunbathing when in cruising configuration, with easy access to the beach area and swimming platform, which in turn are adjacent to the full beam lazarette which can easily accommodate a rigid inflatable boat.

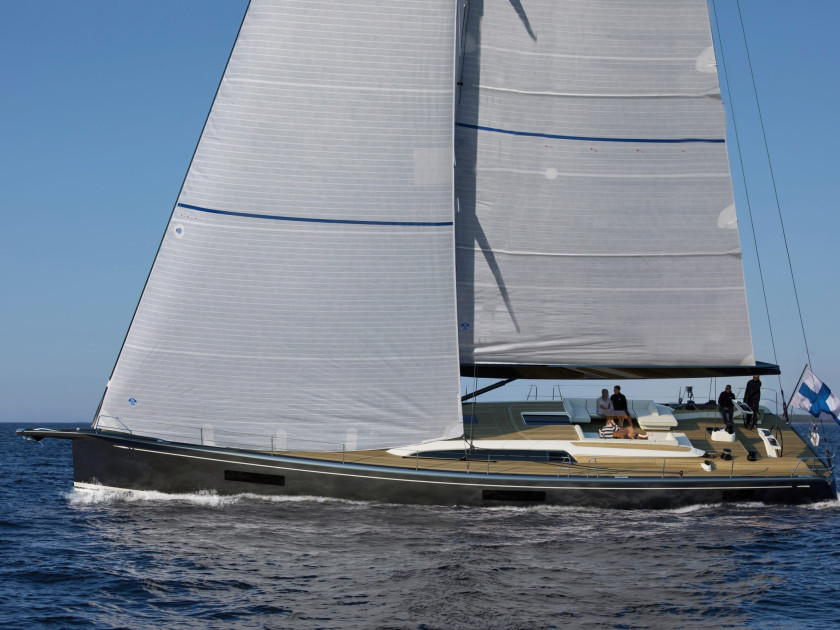

The Swan 80 features twin rudders for directional stability, a tapered hull entrance and powerful aft section, with design allowing optimal balance between performance and stability at different angles of heel.

The hull’s construction of foam cored glass fibre reinforced epoxy with carbon fibre unidirectional reinforcements ensures solidity and durability.

Standard

With options

INTERIORS

The interior designer

Misa Poggi

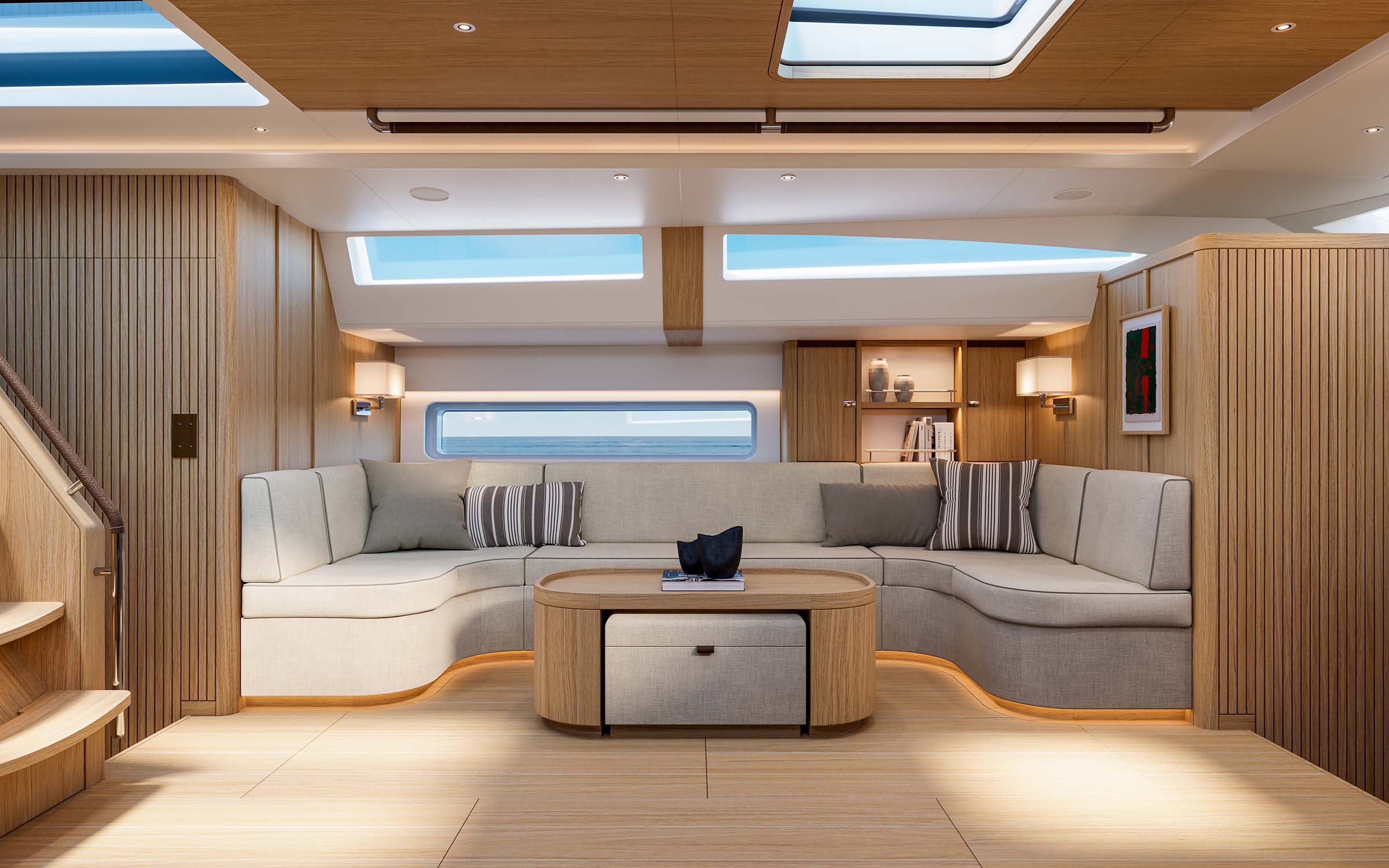

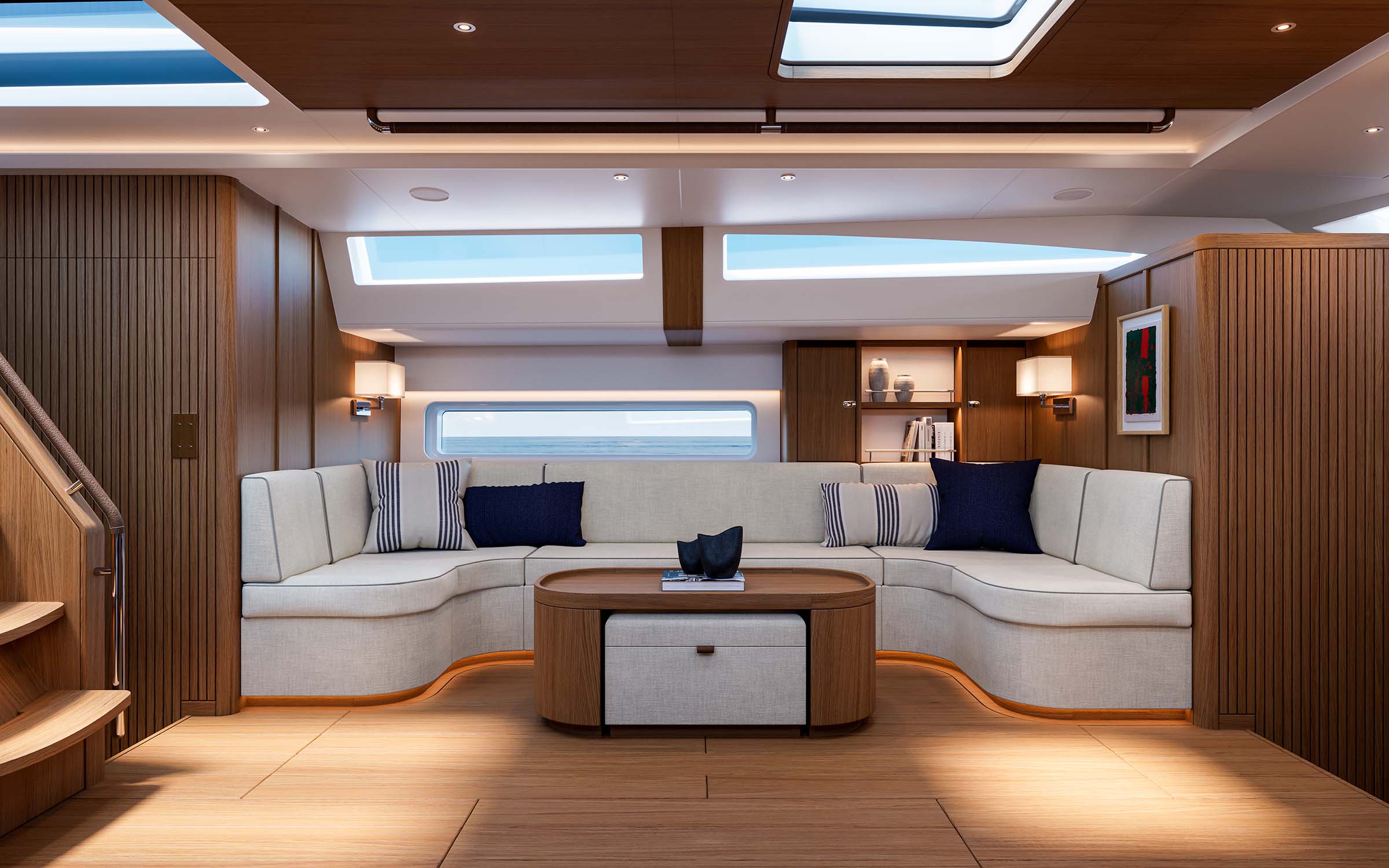

Versatility and flexibility are the order of the day when heading below decks on the Swan 80.

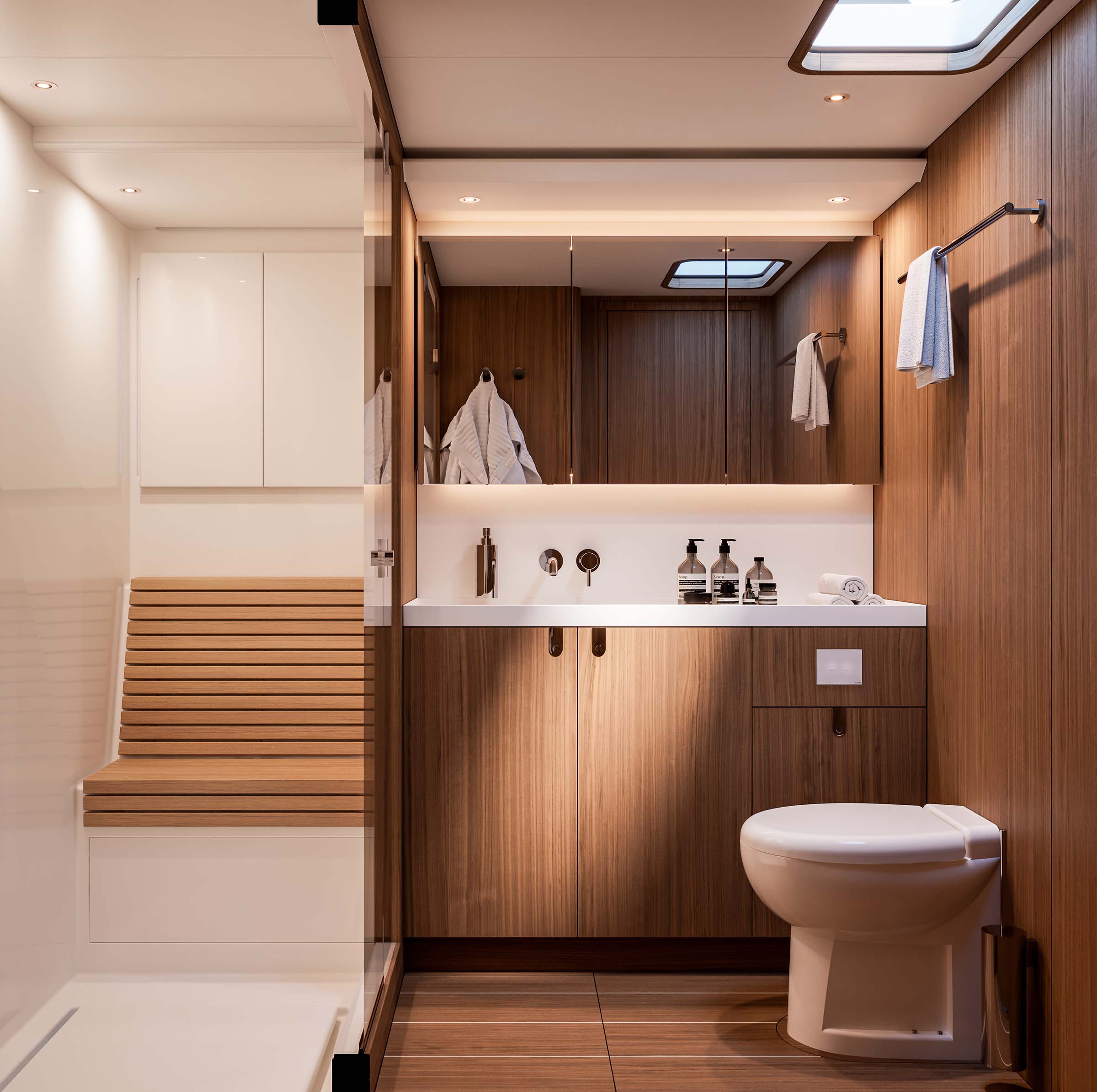

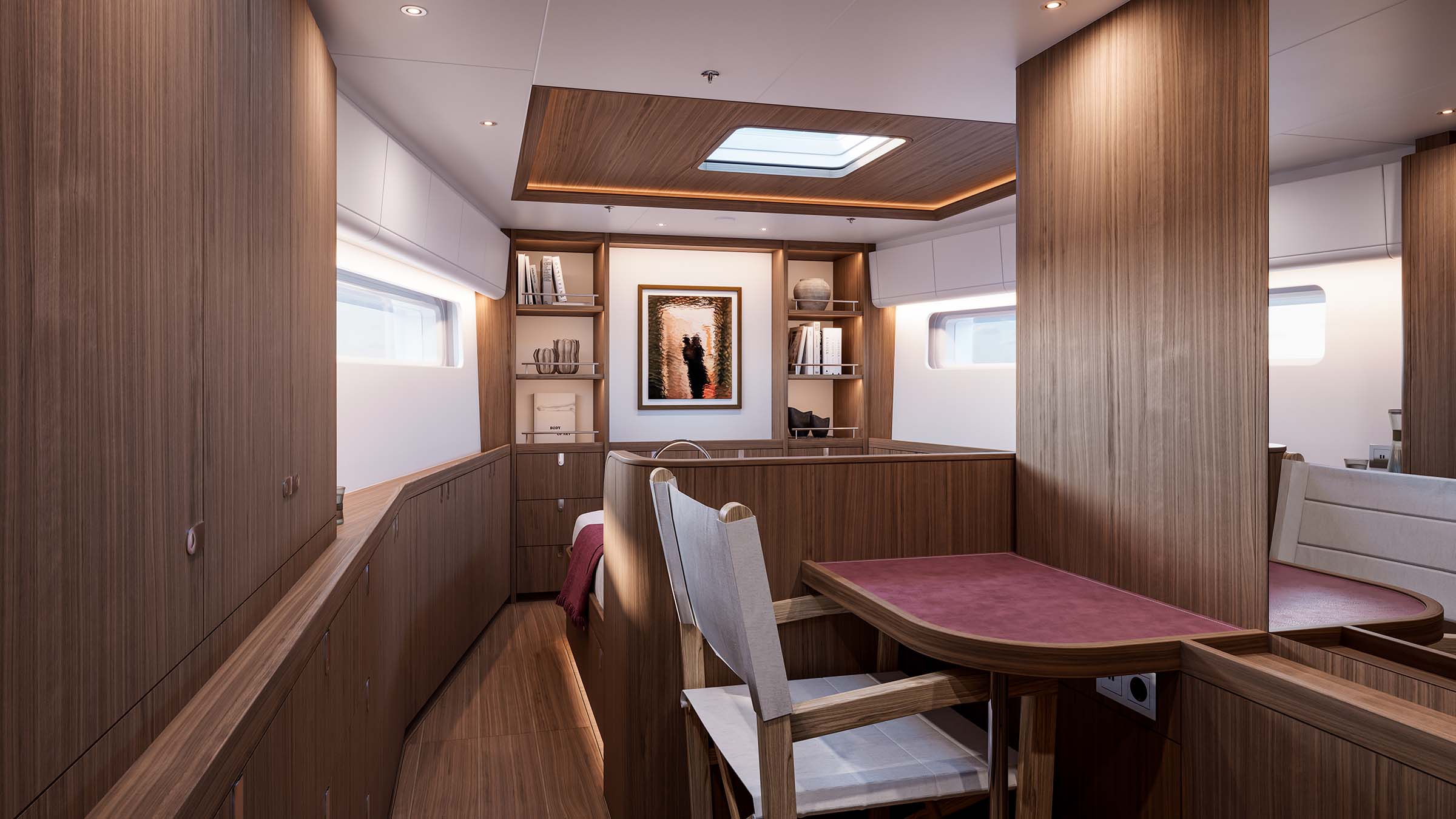

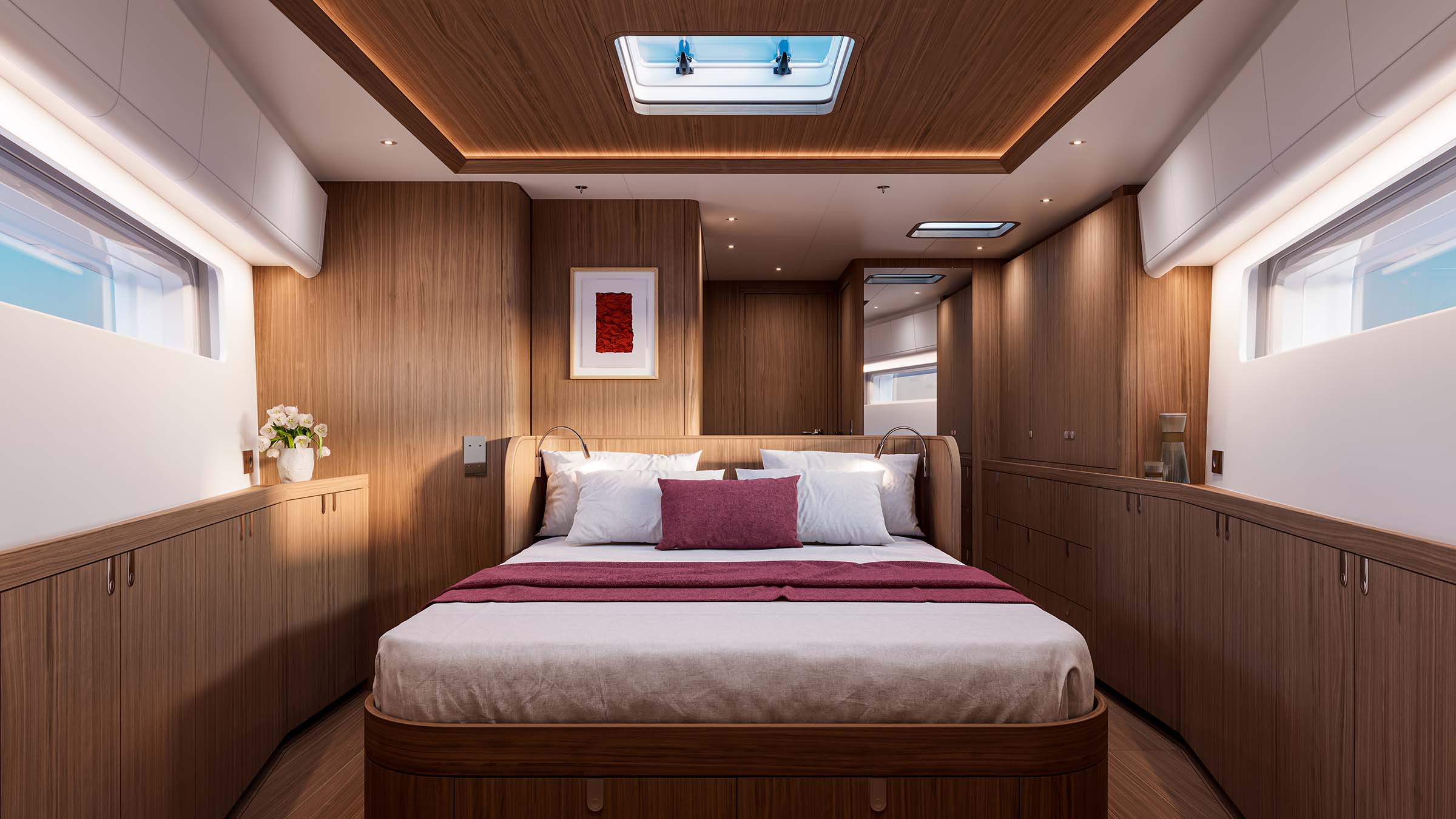

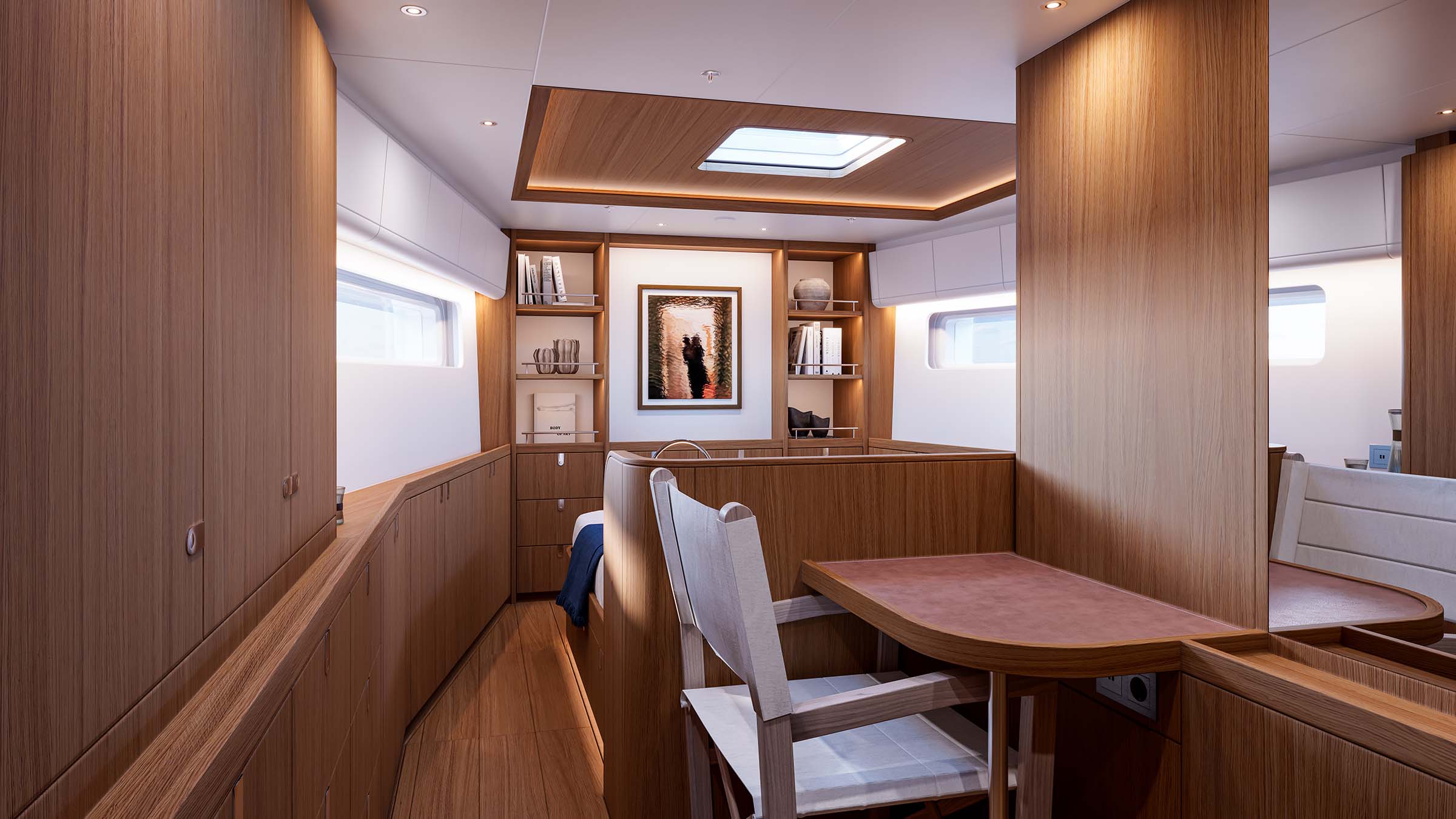

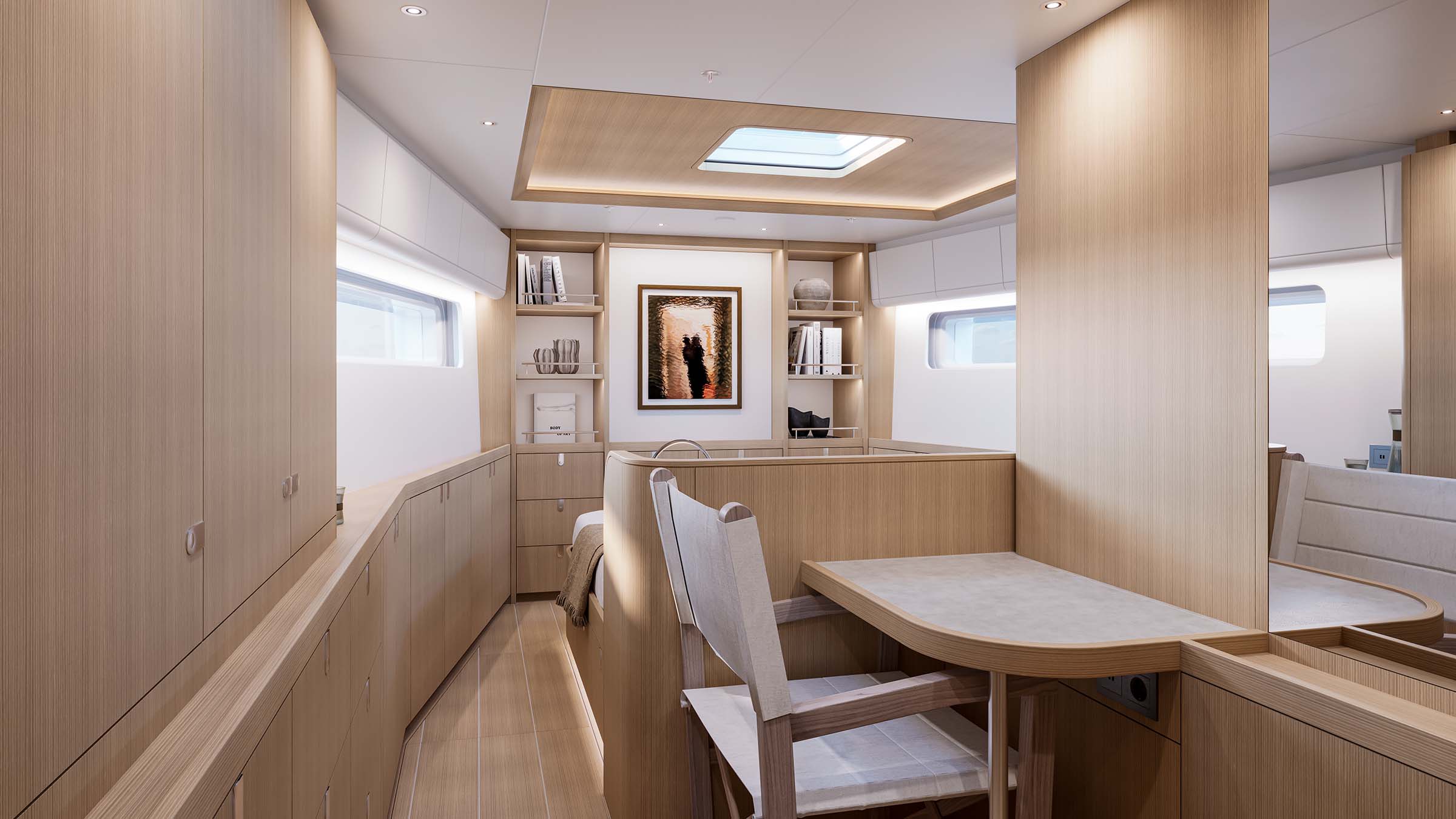

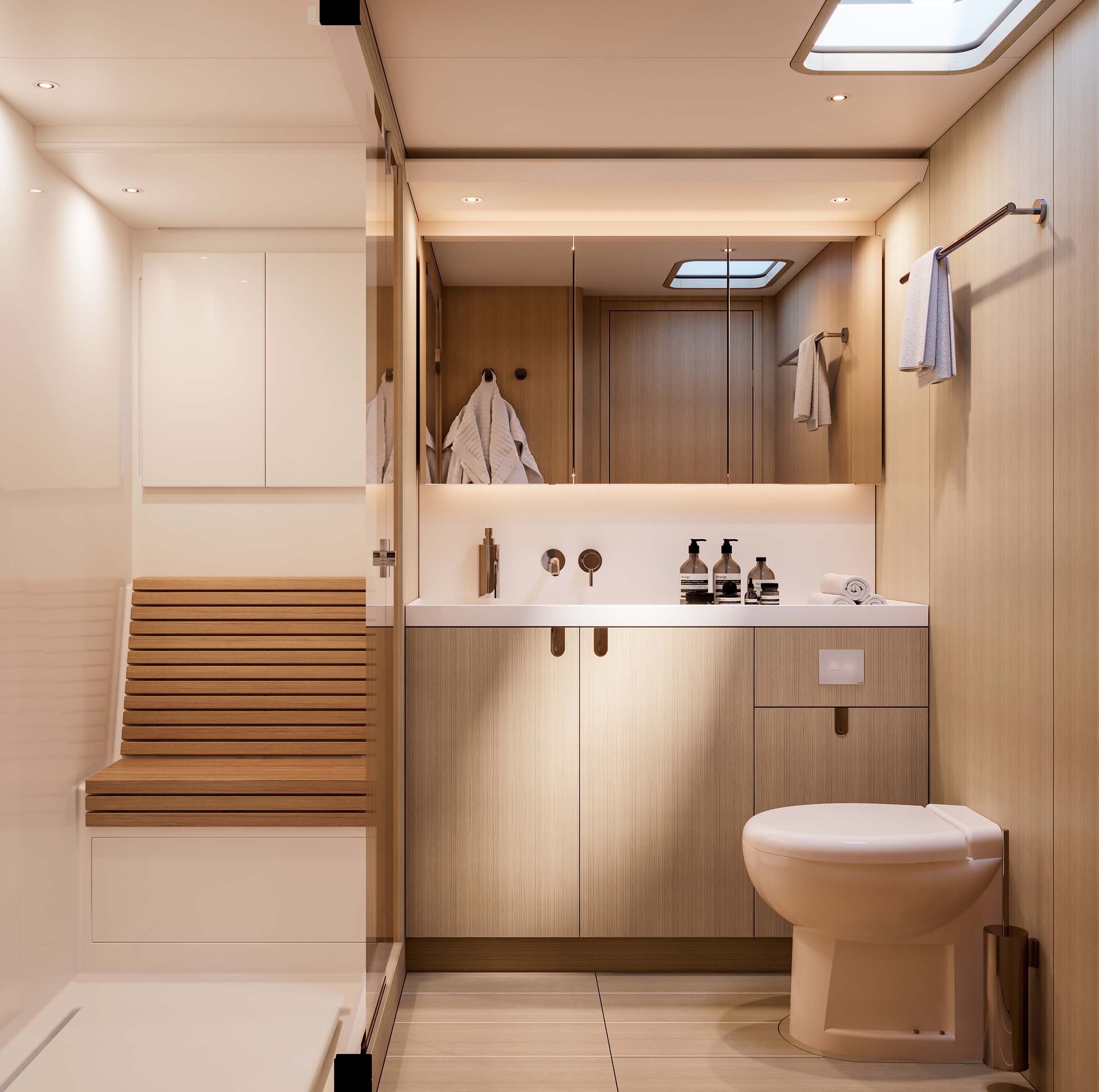

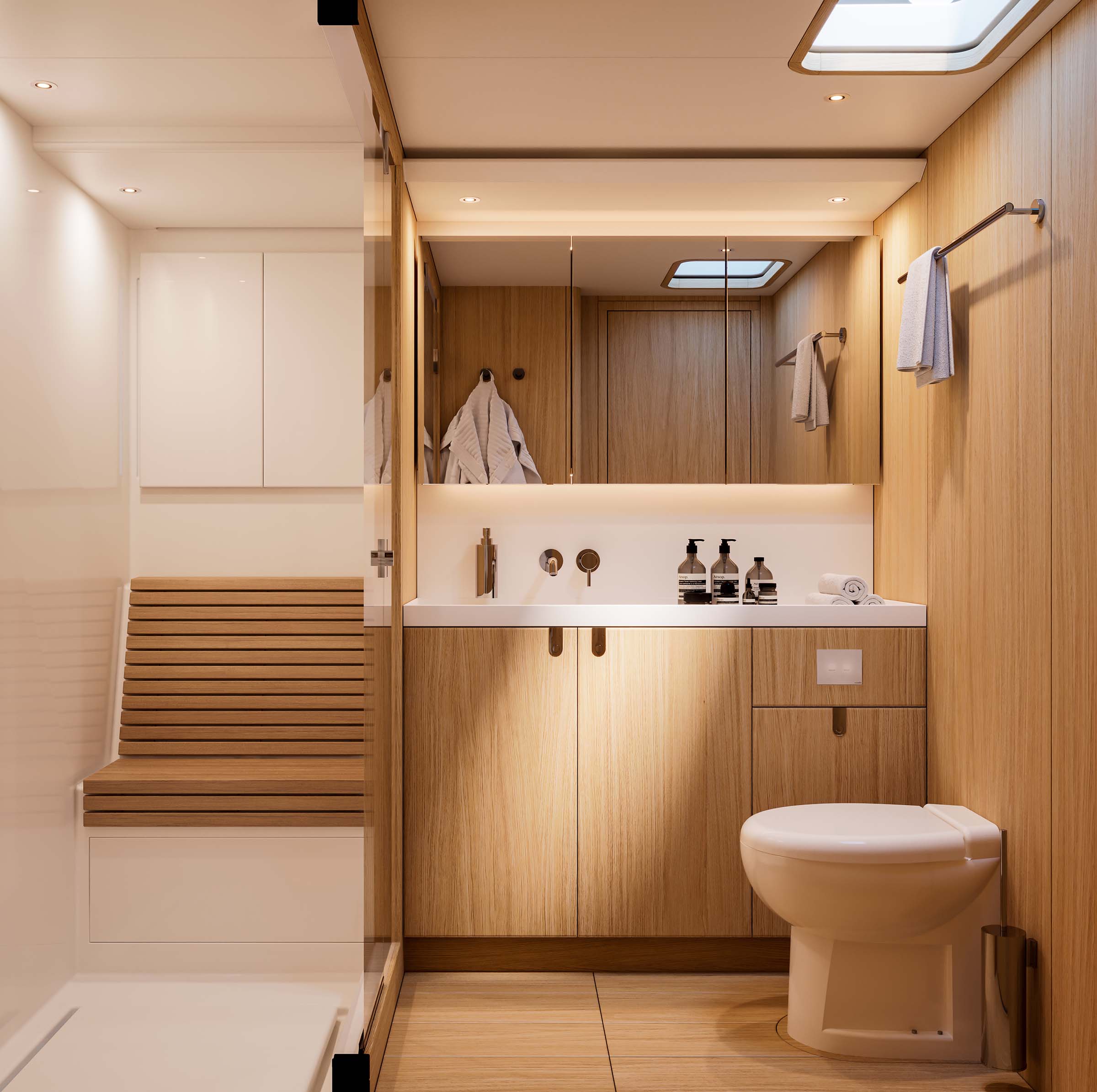

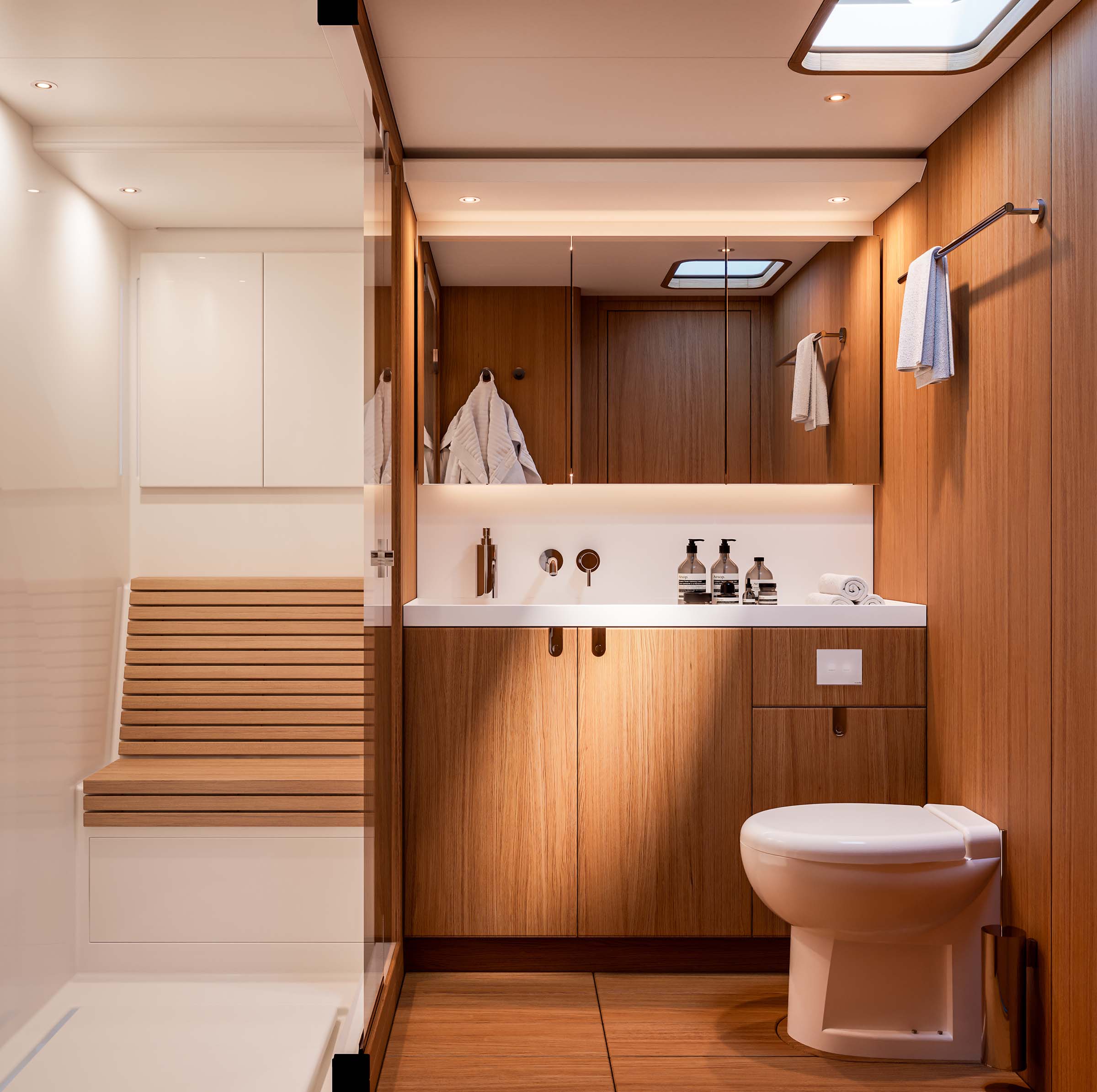

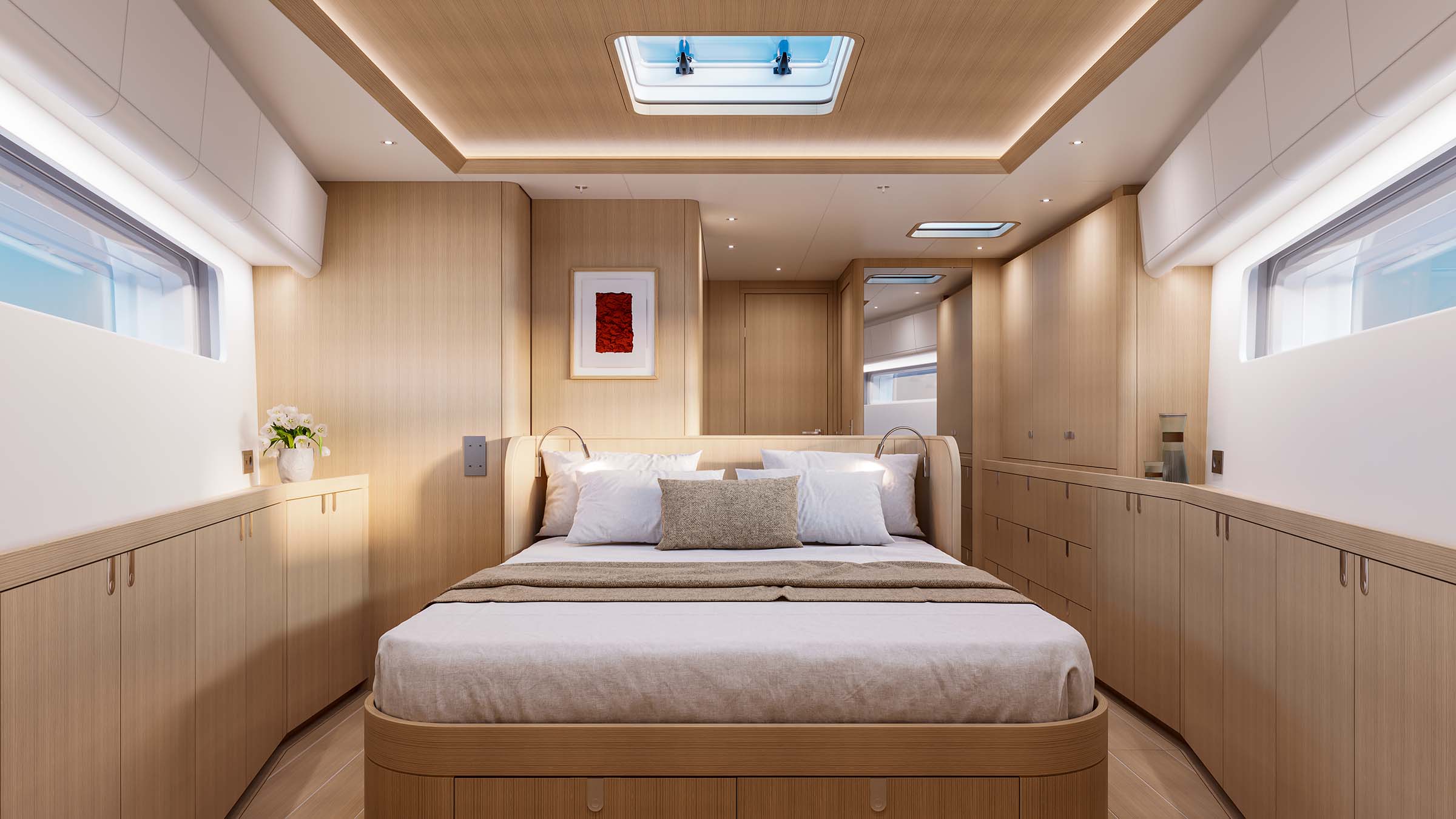

A variety of optional configurations are available for the location of cabins, sitting and dining areas. One possibility sees the spacious owners cabin located forward, with another four guest and VIP cabins all with en suite facilities.

The crew quarters are organised in an area aft, with independent access to the cockpit, engine room and other technical areas to avoid disturbing guests. Another possibility allows for the temporary conversion of a guest cabin for crew use, thus increasing the crew from 2 to 5.

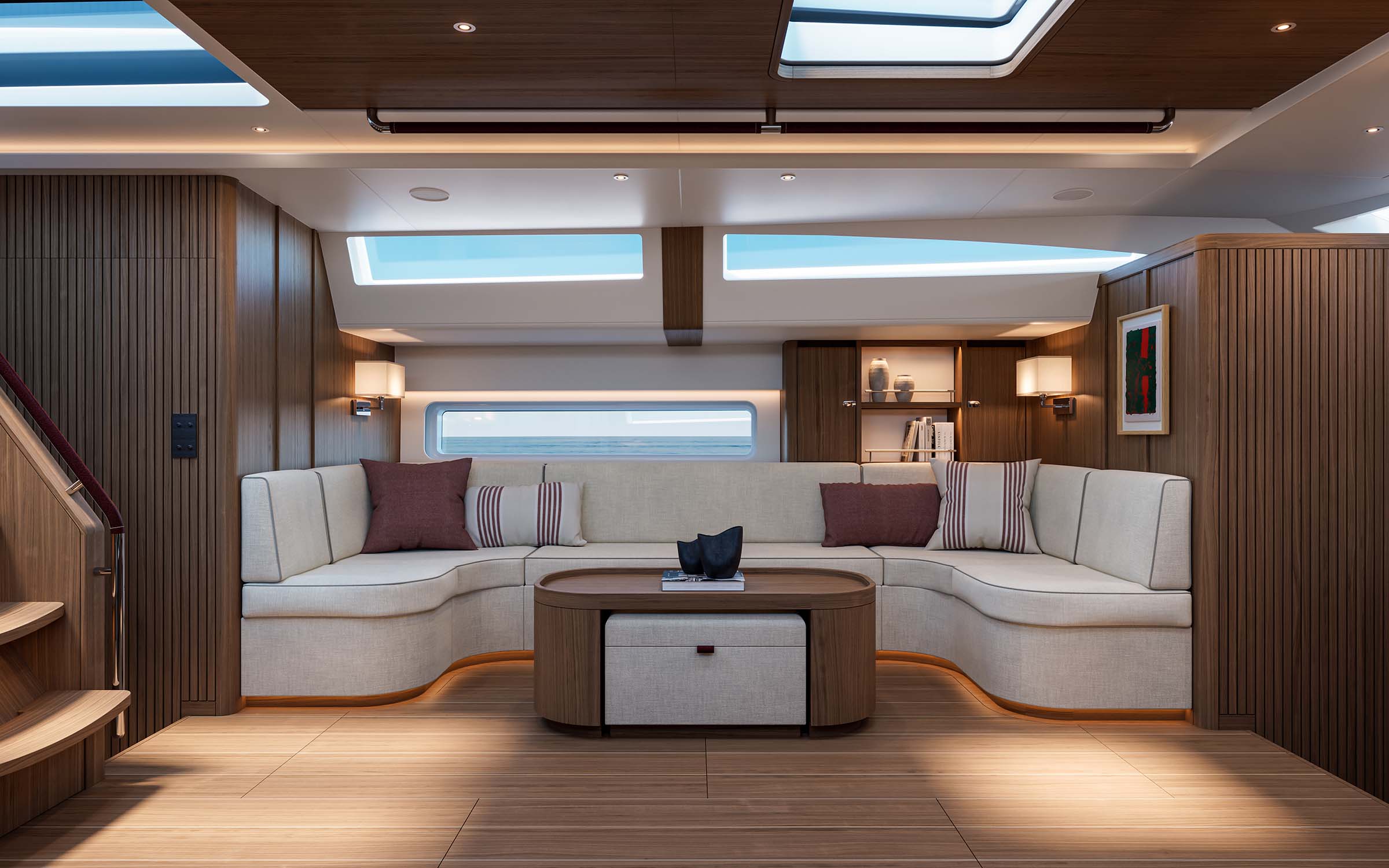

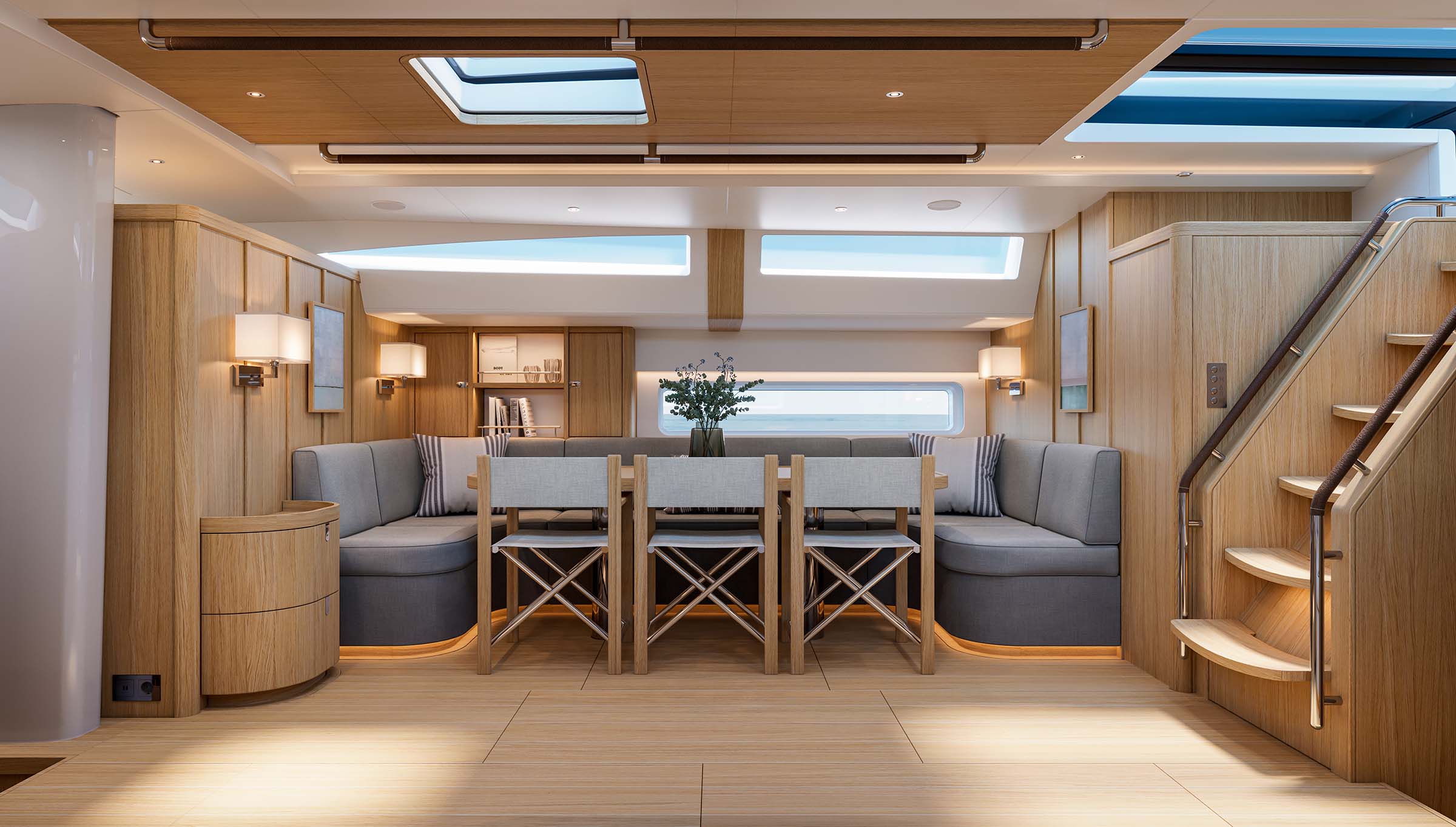

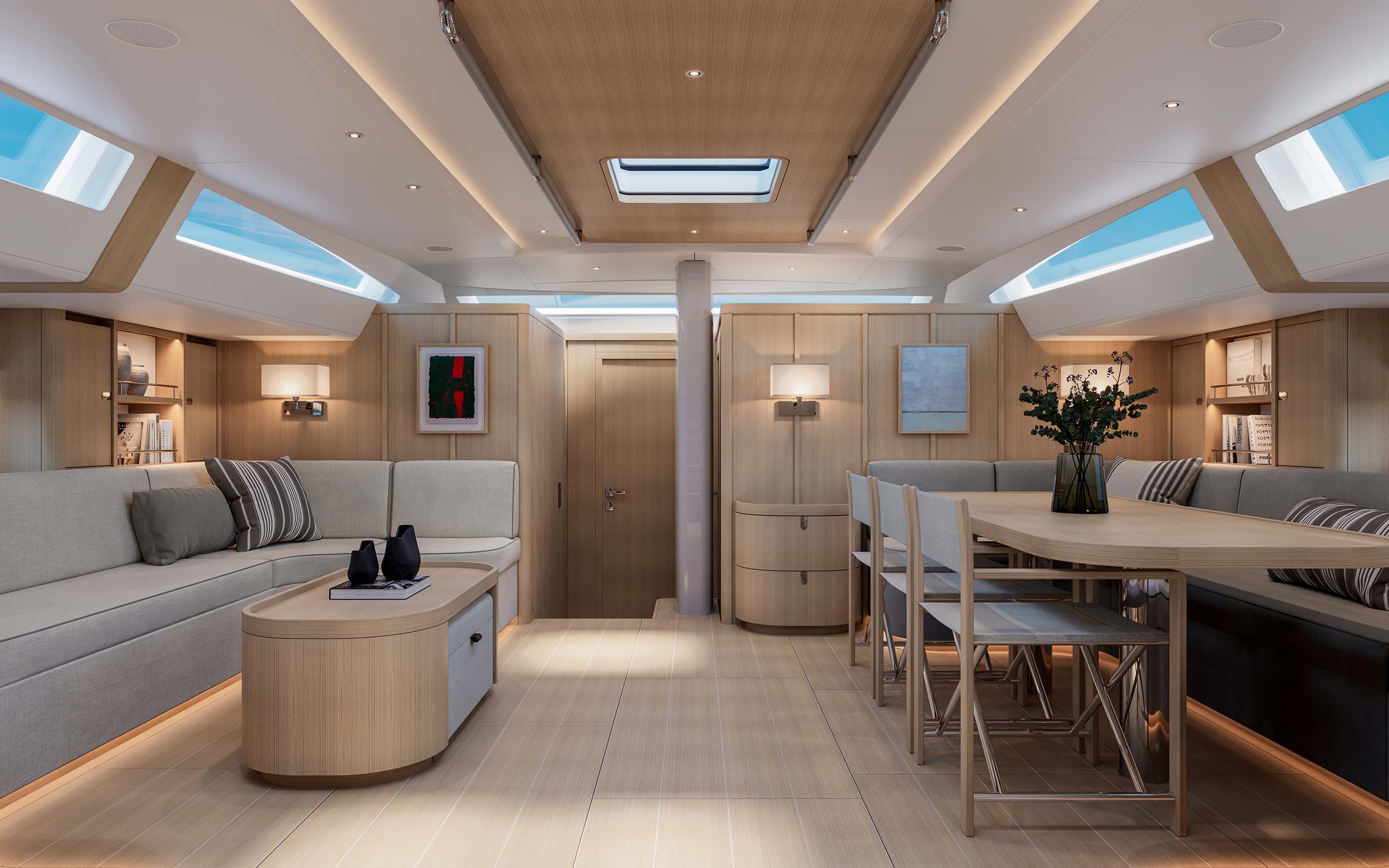

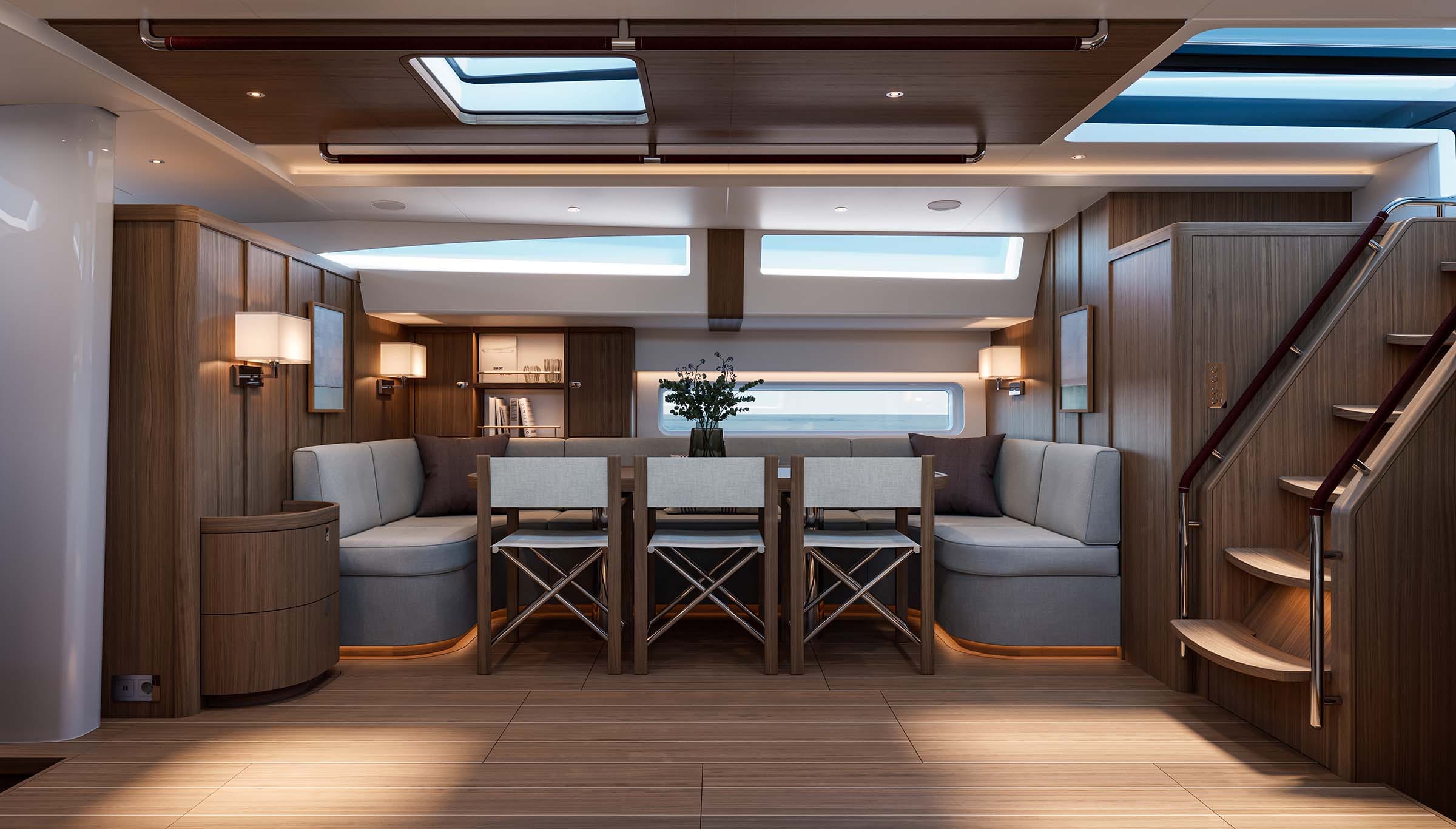

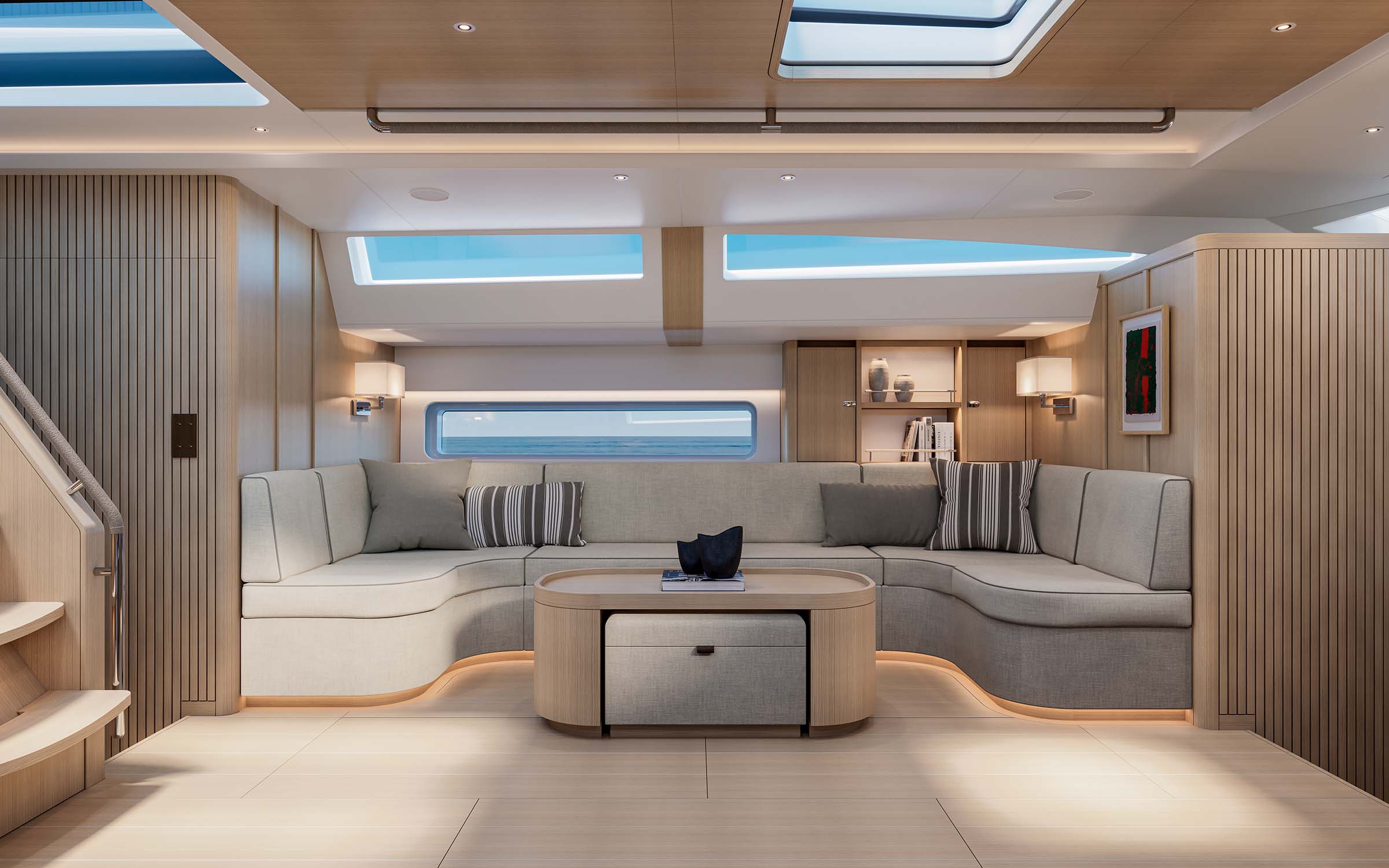

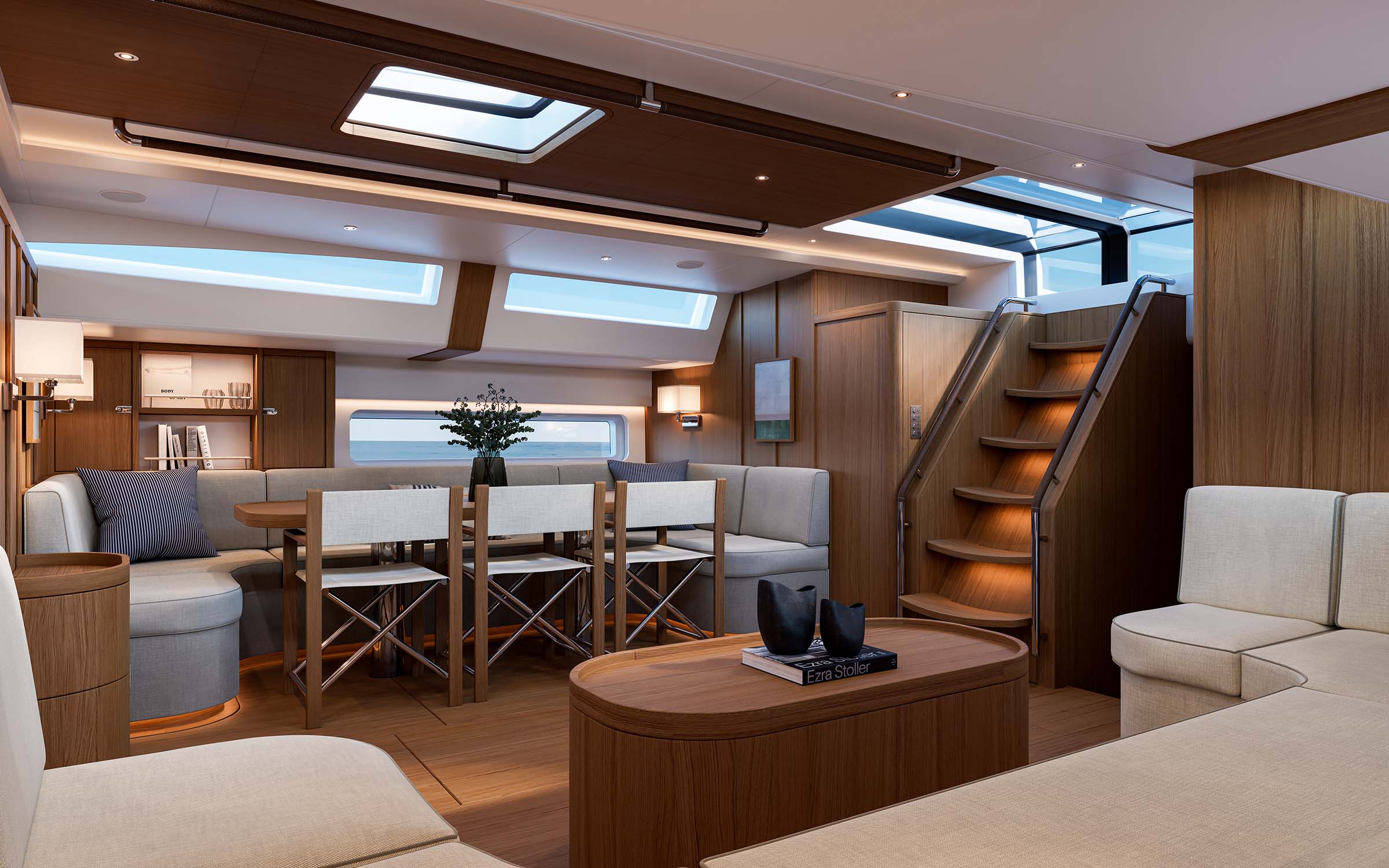

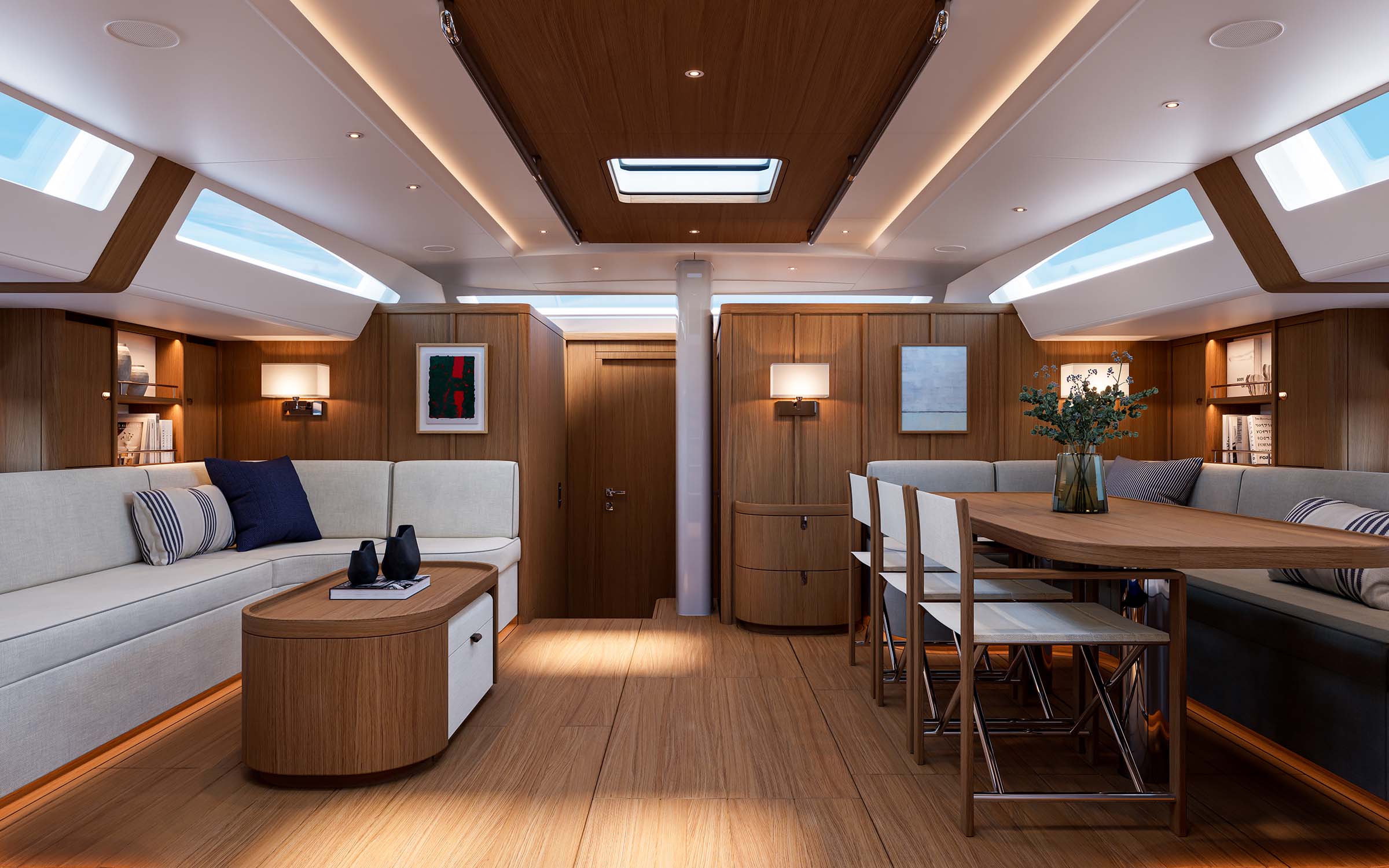

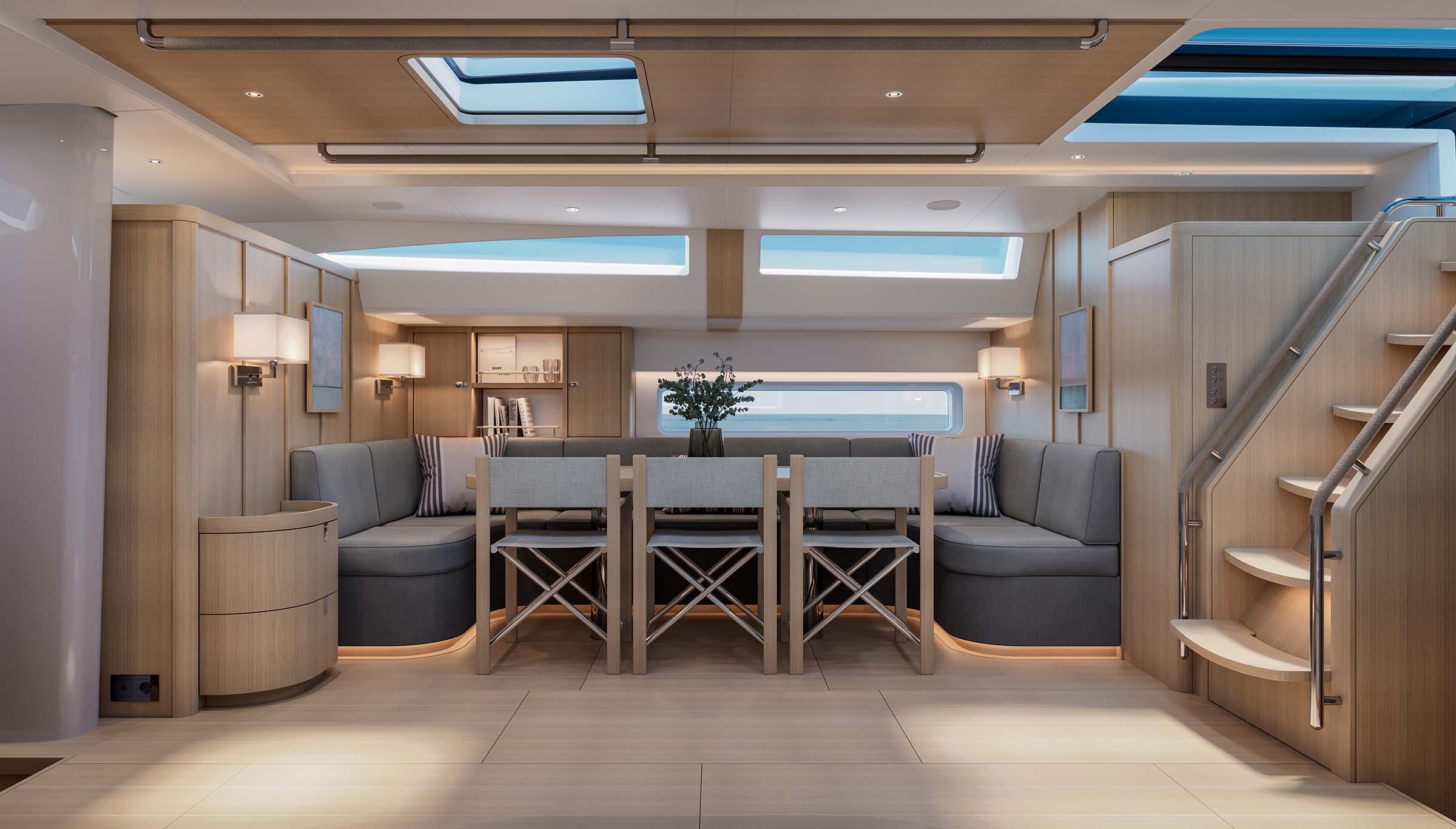

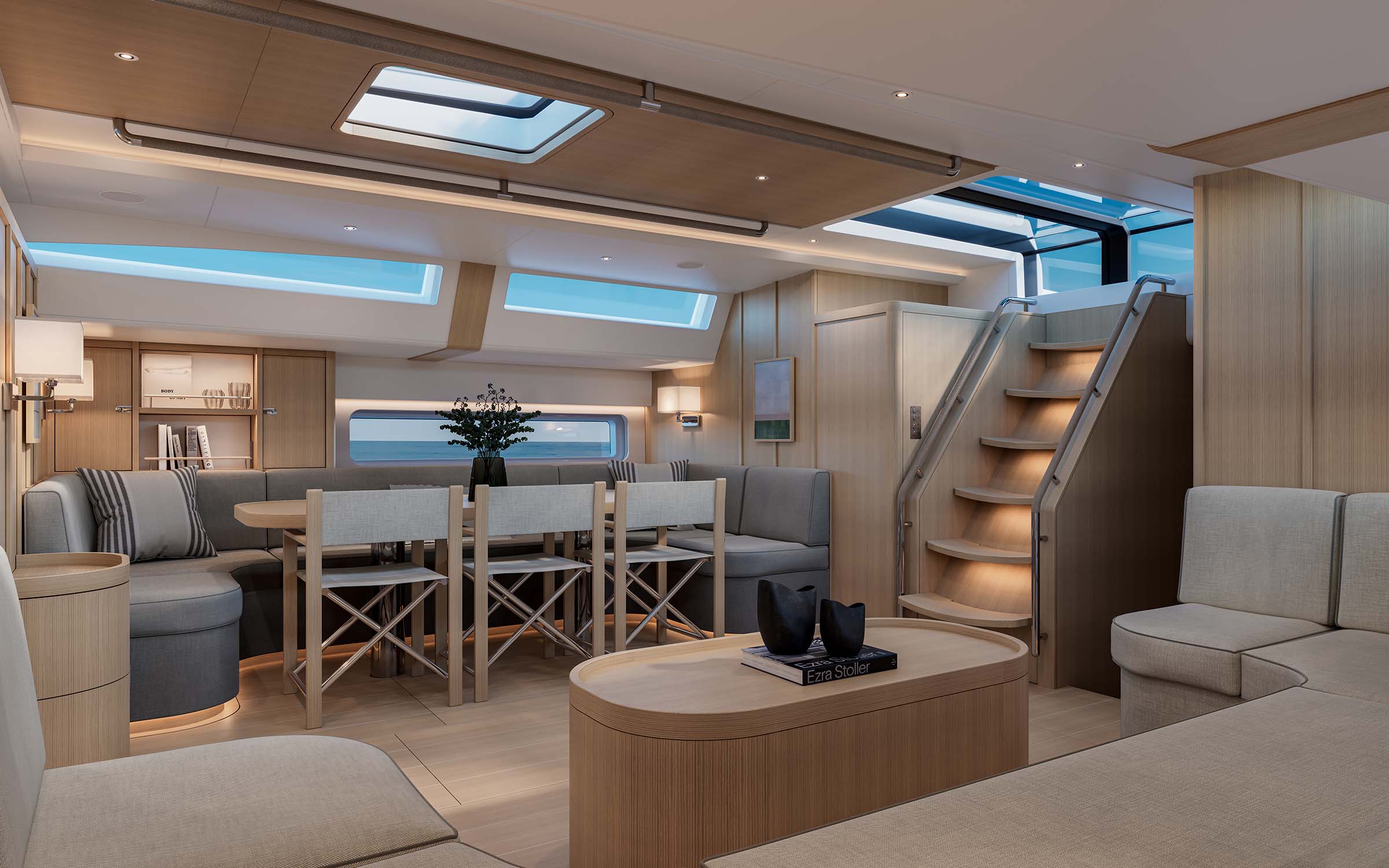

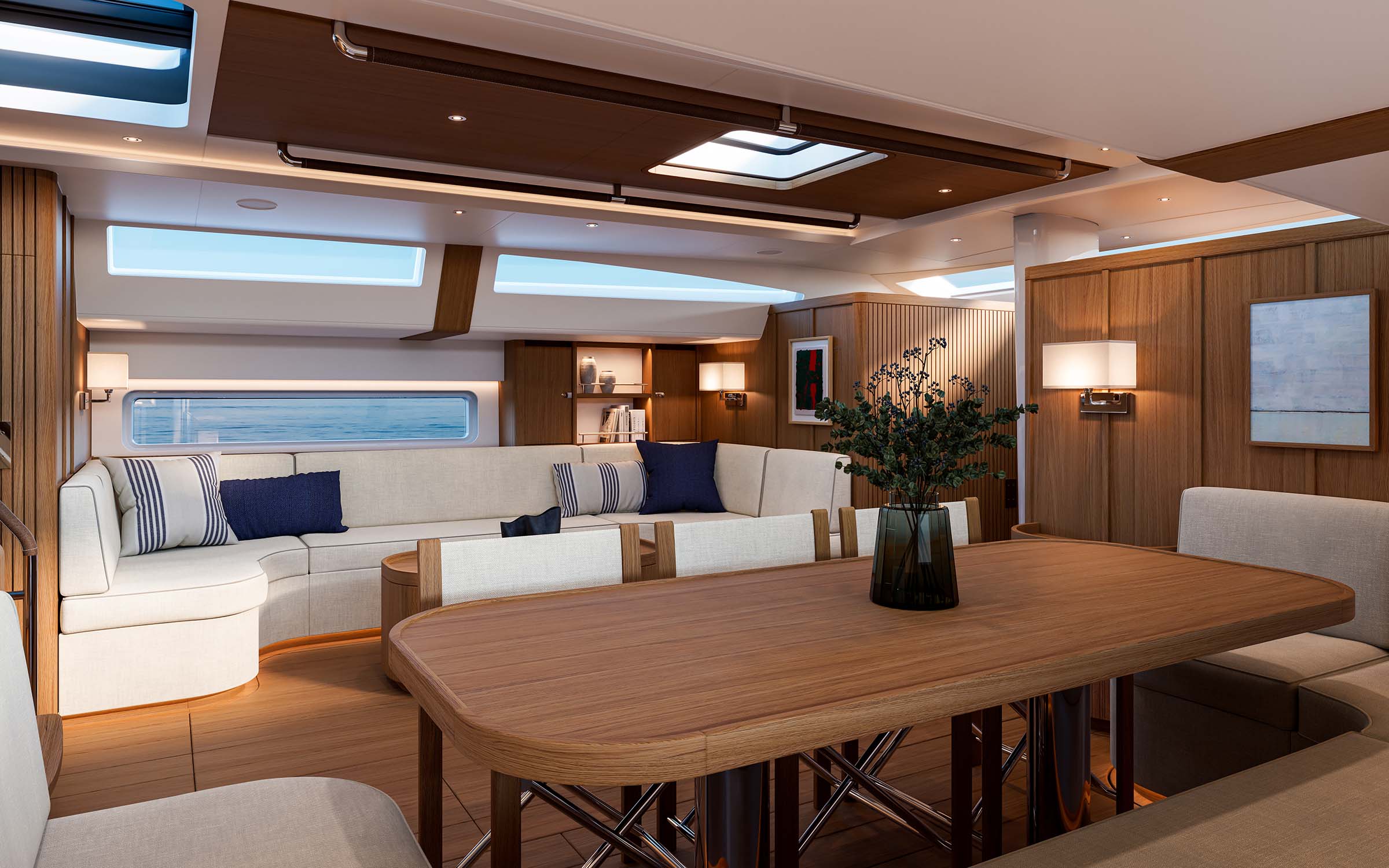

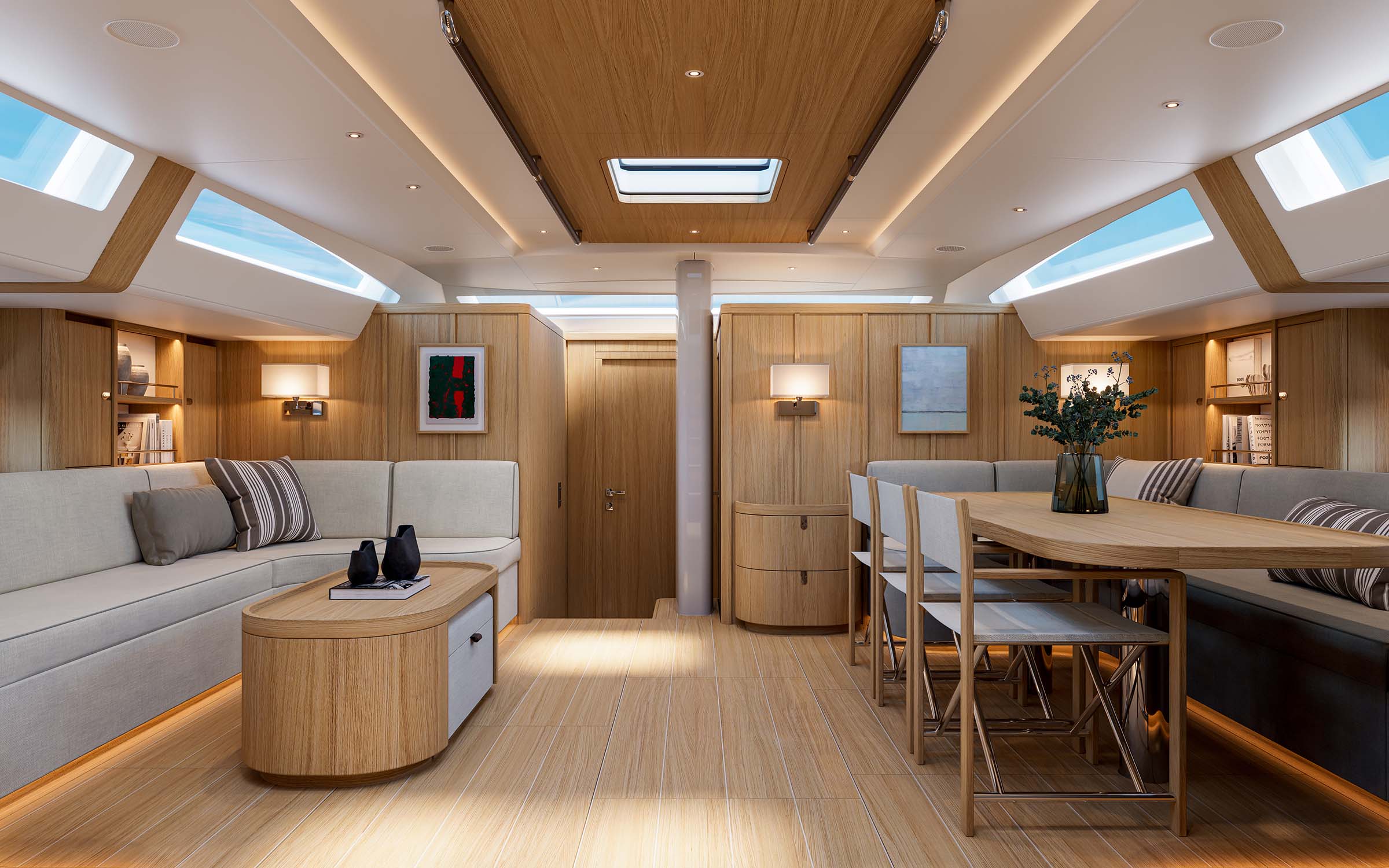

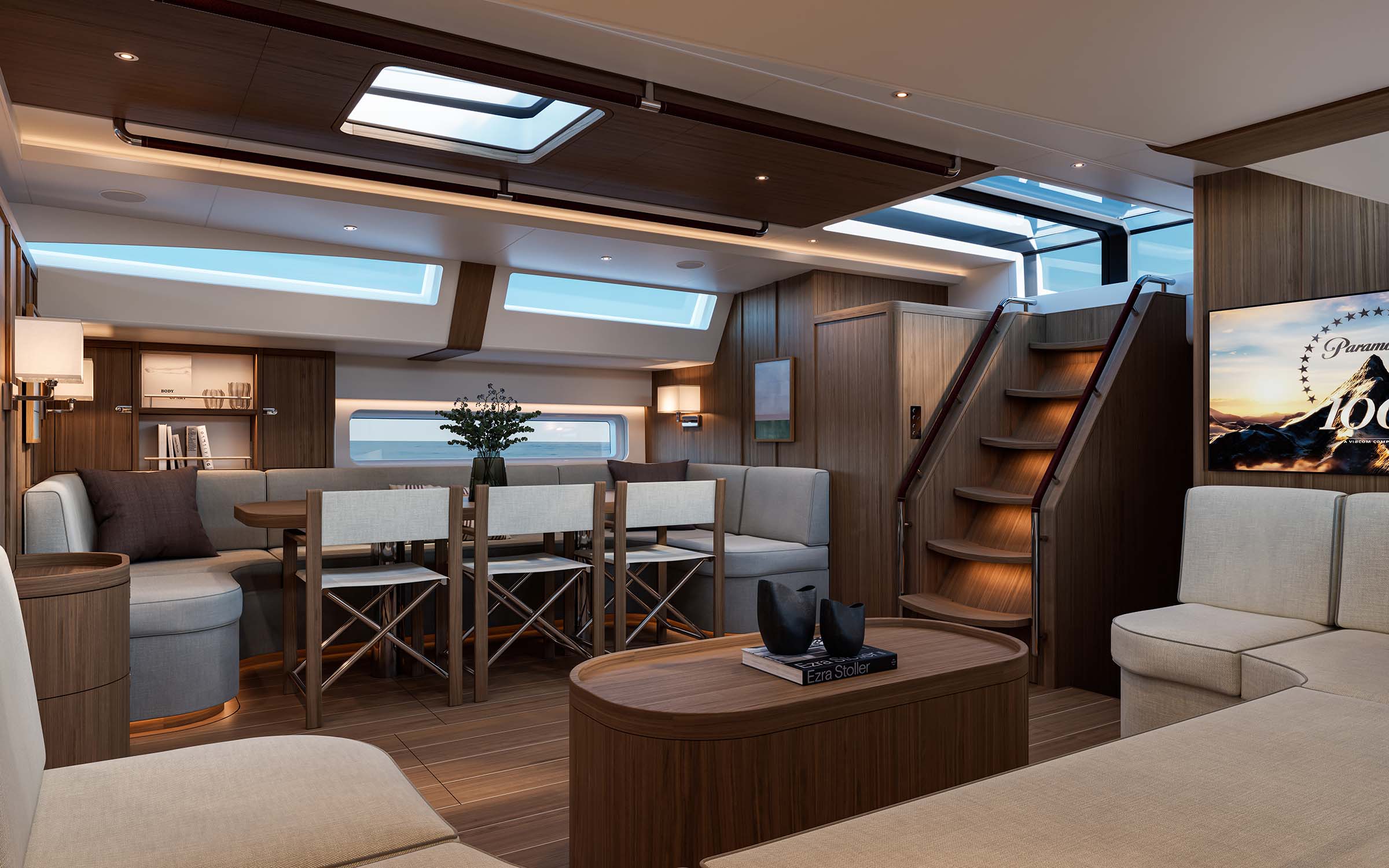

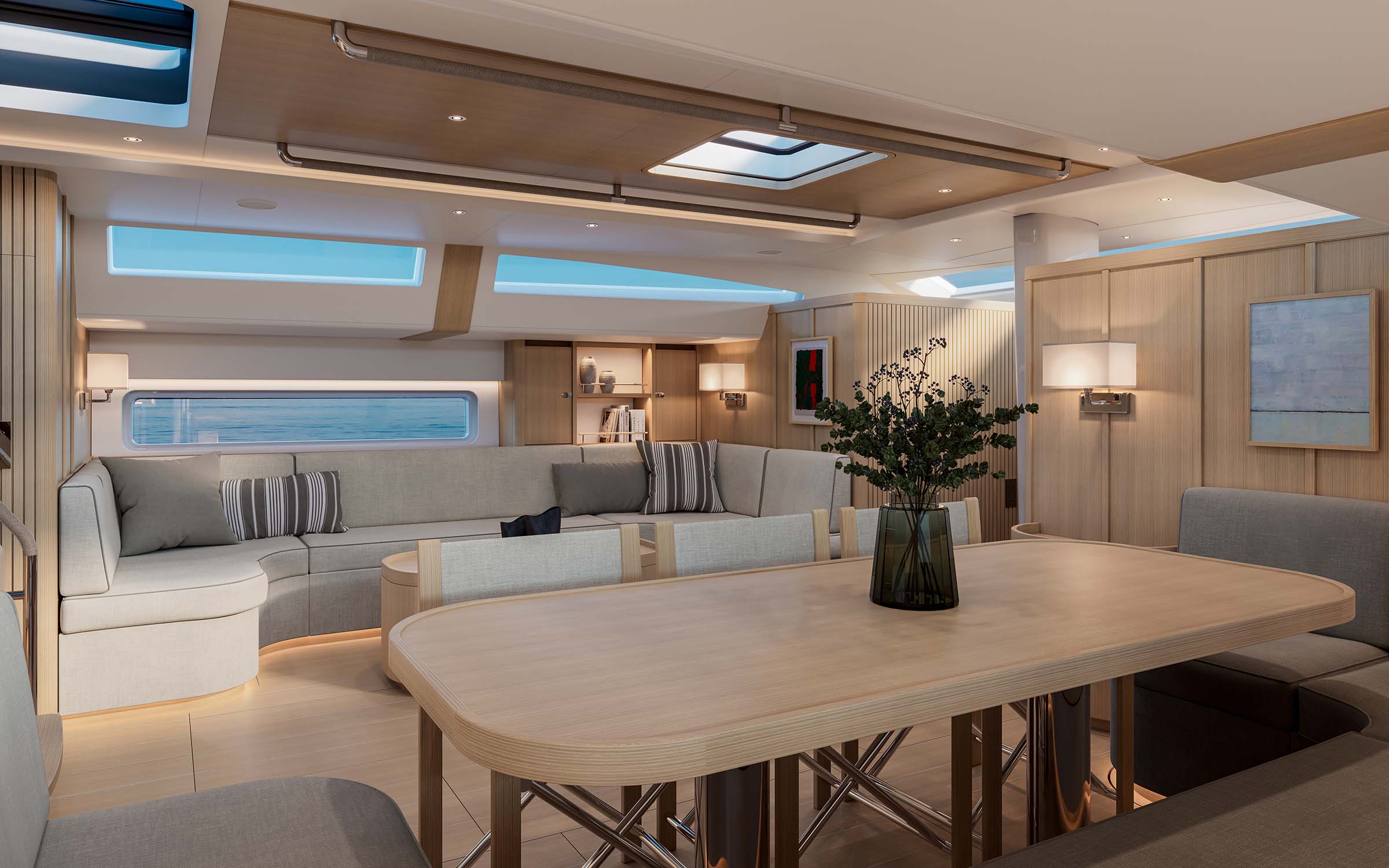

The already spacious saloon area can be further increased by utilising the space of one guest cabin for an additional TV or dining area — another nod to the maxi philosophy.

Standard

With options

SPECIFICATIONS

Length of hull 23.99 m 78.70 ft
LOA 25.55 m 83.82 ft
LWL 22.18 m 72.77 ft
Beam max 6.40 m 21.00 ft
Draught (std) 4.00 m 13.12 ft
Draught Shallow 3.5 m 11.48 ft
Draught Telescopic 3.00/4.30 m 9.84/14.10 ft
Displacement (light) 42600 kg 93916 lbs
Ballast 11600 kg 25573 lbs
Engine Steyr SE186E38 129 kW 175 hp
IG 31.60 m 103.67 ft
J 9.77 m 32.05 ft
P 31.00 m 101.71 ft
E 10.25 m 33.63 ft
Fore triangle 154.4 m² 1662 sq.ft
Main sail 196.0 m² 2110 sq.ft
Jib 174.3 m² 1876 sq.ft
Fuel2000 L 528 US gal
Water1300 L 343 US gal
Hot water100 L 26 US gal
Grey water270 L 71 US gal
Black water270 L 71 US gal
Service batteries 24V 1050Ah / 5 h
Handling system batteries 24V 225Ah / 20 h
Starting batteries 12V 75Ah / 20 h
Diesel generator Northern Light M864W3 230V 20kW 50Hz
Shore power 230V 63A + 230V 50A for AC
DIMENSIONS
Length of hull 23.99 m 78.70 ft
LOA 25.55 m 83.82 ft
LWL 22.18 m 72.77 ft
Beam max 6.40 m 21.00 ft
Draught (std) 4.00 m 13.12 ft
Draught Shallow 3.5 m 11.48 ft
Draught Telescopic 3.00/4.30 m 9.84/14.10 ft
Displacement (light) 42600 kg 93916 lbs
Ballast 11600 kg 25573 lbs
Engine Steyr SE186E38 129 kW 175 hp
RIG AND SAIL DIMENSIONS
IG 31.60 m 103.67 ft
J 9.77 m 32.05 ft
P 31.00 m 101.71 ft
E 10.25 m 33.63 ft
SAIL AREAS
Fore triangle 154.4 m² 1662 sq.ft
Main sail 196.0 m² 2110 sq.ft
Jib 174.3 m² 1876 sq.ft
TANK CAPACITY
Fuel2000 L 528 US gal
Water1300 L 343 US gal
Hot water100 L 26 US gal
Grey water270 L 71 US gal
Black water270 L 71 US gal
BATTERY
Service batteries 24V 1050Ah / 5 h
Handling system batteries 24V 225Ah / 20 h
Starting batteries 12V 75Ah / 20 h
Diesel generator Northern Light M864W3 230V 20kW 50Hz
Shore power 230V 63A + 230V 50A for AC
