Swan 108

Design

Designed with moderate freeboards like every Swan yacht, this new model offers seaworthiness, great comfort at sea also in very rough conditions, and handles gently in waves. She is a proper bluewater yacht with great performance and able to compete at top level when required.

The architect

German Frers

“We always start a project with a clean slate as a way to investigate and double check the choices available and to match the briefs from the sales force closely. There is no specific change you need to make once you go over a 100’ but just continue observing the mathematics and laws of physics. Specifically: length changes linearly, areas are squared, volume is cubed, stability varies to the 4th exponent”.

Standard Sailplan

Deck

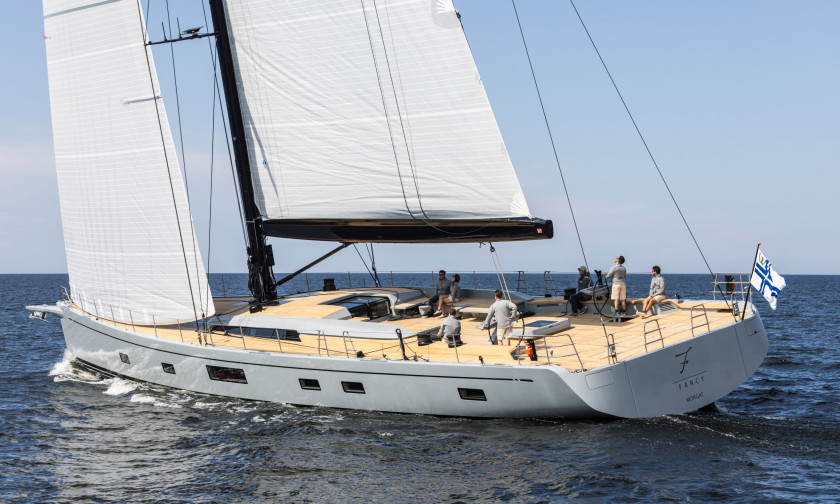

The innovative deck layout comes in two solutions for the cockpit. The owner can choose a step in the aft deck area or a completely flush deck. Both solutions mean that the area is suitable for sunbathing or just as a lounge area to sit and relax.

The innovative coachroof is beautiful yet functional with an extra-large companionway leading to the saloon to give an idea of continuity with the cockpit. Innovation isn’t only in style but also functionality, for example helm stations have been moved forward and in a higher position to enhance visibility and control of the yacht bringing the aft part of the cockpit completely available for sunbathing, relaxation and the beach club area.

Exterior Designer

Micheletti+Partners

“The Swan 108 conveys to future owners an idea of ​​beauty starting from her natural elegance. We revisited the shapes and technical surfaces of the coachroof, modeling the lines to reach a point of maximum balance by playing with aerodynamics and proportions. We wanted a shape smoothed by the wind where the essential and dynamic lines were enhanced. We needed to find a new and timeless style that carries the Swan brand forward, a boat conceived around a new luxury where the future reinterprets the classic”.

standard

with options

Interior

The interior designer

Misa Poggi

“Air, light, space: these are the three pillars I bear in mind while designing a Swan. I work with materials and colours obtained from a careful selection, thinking above all about the tactile and visible sensation to achieve different moods. I choose light colours to give an idea of breadth and dark colors for a more intimate atmosphere. Everything should give the idea of being immersed in a bright space in perfect harmony with the outside.”

Configurations

standard

Specifications

Length of hull33.00 m 108.27 ft
LOA (with Bowsprit)35.00 m 114.83 ft
LWL30.56 m 100.26 ft
Beam max7.55 m 24.8 ft
Draught (Standard keel)4.9 m 16.1 ft
Displacement (light ship)83.900 kg 184.900 lbs
Ballast (fin and bulb)28.600 kg 63.000 lbs
Engine257 kW (350 hp)
IG43.30 m 142.06 ft
J12.92 m 42.39 ft
P42.00 m 137.80 ft
E13.96 m 45.80 ft
TPS15.90 m 52.17 ft
Jib Area (ORC)304.3 m² 3.275 ft²
Mainsail (ORC)344.0 m² 3.702 ft²
Fuel4.000 l 1057 USg
AdBlue400 l 106 USg
Fresh water2.600 l 686 USg
Hot water200 l 54 USg
Grey water600 l 158 USg
Black water600 l 158 USg
Service battery24 V 1.800 Ah / 1 h
Electronics battery24 V 200 Ah / 1 h
Starting batteries24 V 50 Ah / 20 h
Diesel generator2 x 230 V 26 kW 1 phase
Shore power230 V 63 A + 230 V 50 A for AC
DIMENSIONS
Length of hull33.00 m 108.27 ft
LOA (with Bowsprit)35.00 m 114.83 ft
LWL30.56 m 100.26 ft
Beam max7.55 m 24.8 ft
Draught (Standard keel)4.9 m 16.1 ft
Displacement (light ship)83.900 kg 184.900 lbs
Ballast (fin and bulb)28.600 kg 63.000 lbs
Engine257 kW (350 hp)
RIG AND SAIL DIMENSIONS
IG43.30 m 142.06 ft
J12.92 m 42.39 ft
P42.00 m 137.80 ft
E13.96 m 45.80 ft
TPS15.90 m 52.17 ft
SAIL AREAS
Jib Area (ORC)304.3 m² 3.275 ft²
Mainsail (ORC)344.0 m² 3.702 ft²
TANK CAPACITY
Fuel4.000 l 1057 USg
AdBlue400 l 106 USg
Fresh water2.600 l 686 USg
Hot water200 l 54 USg
Grey water600 l 158 USg
Black water600 l 158 USg
BATTERY
Service battery24 V 1.800 Ah / 1 h
Electronics battery24 V 200 Ah / 1 h
Starting batteries24 V 50 Ah / 20 h
Diesel generator2 x 230 V 26 kW 1 phase
Shore power230 V 63 A + 230 V 50 A for AC
